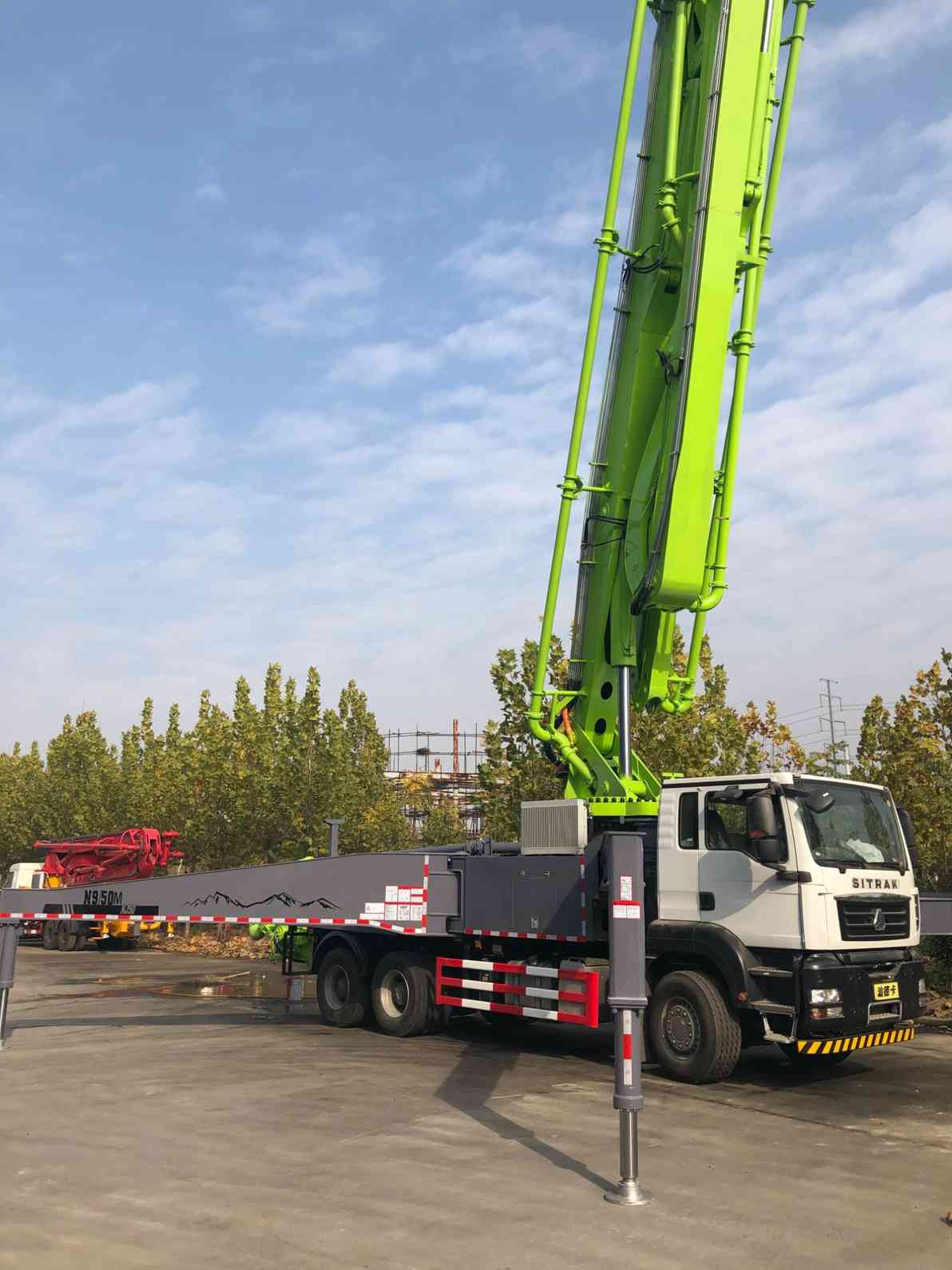

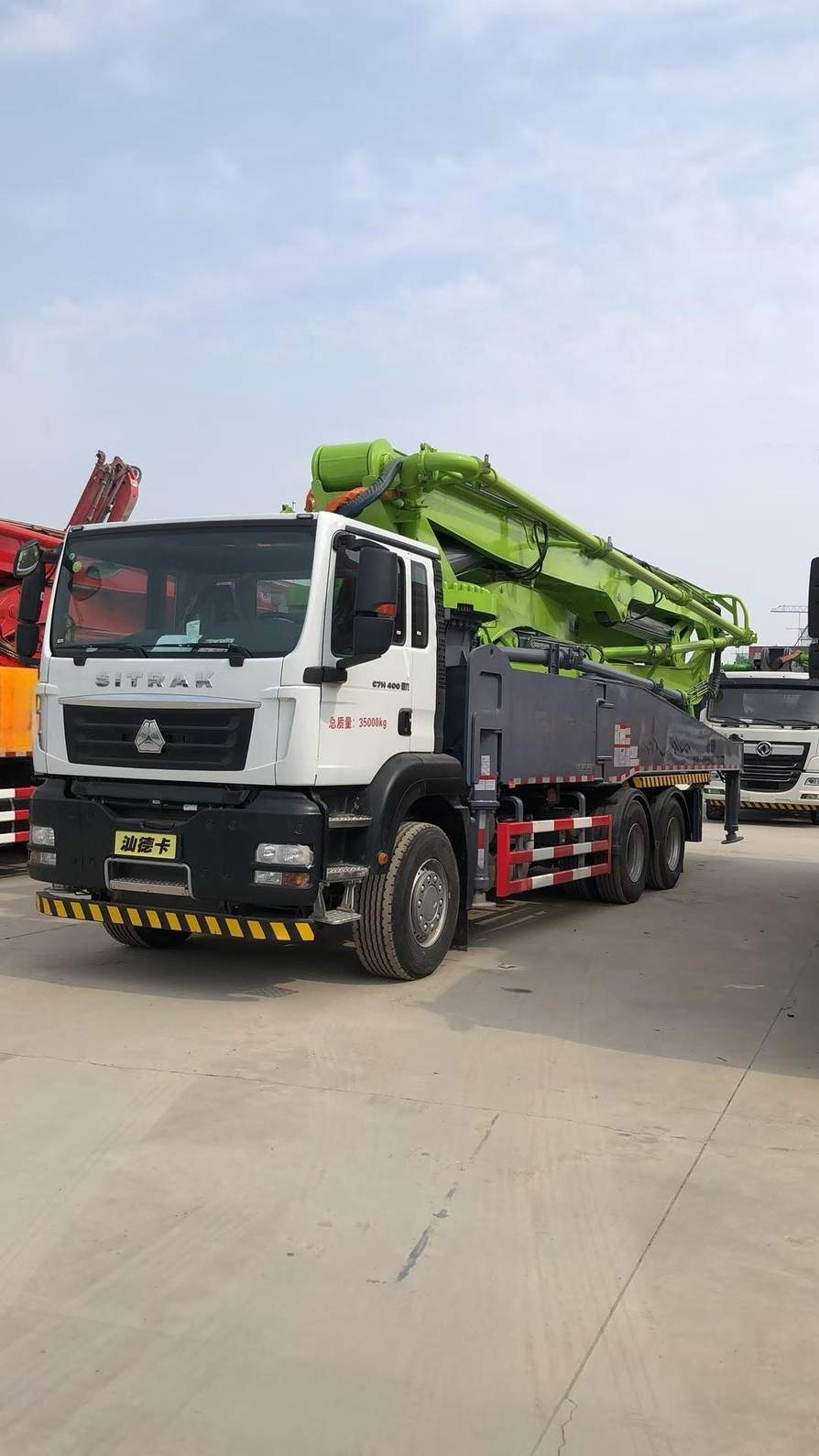

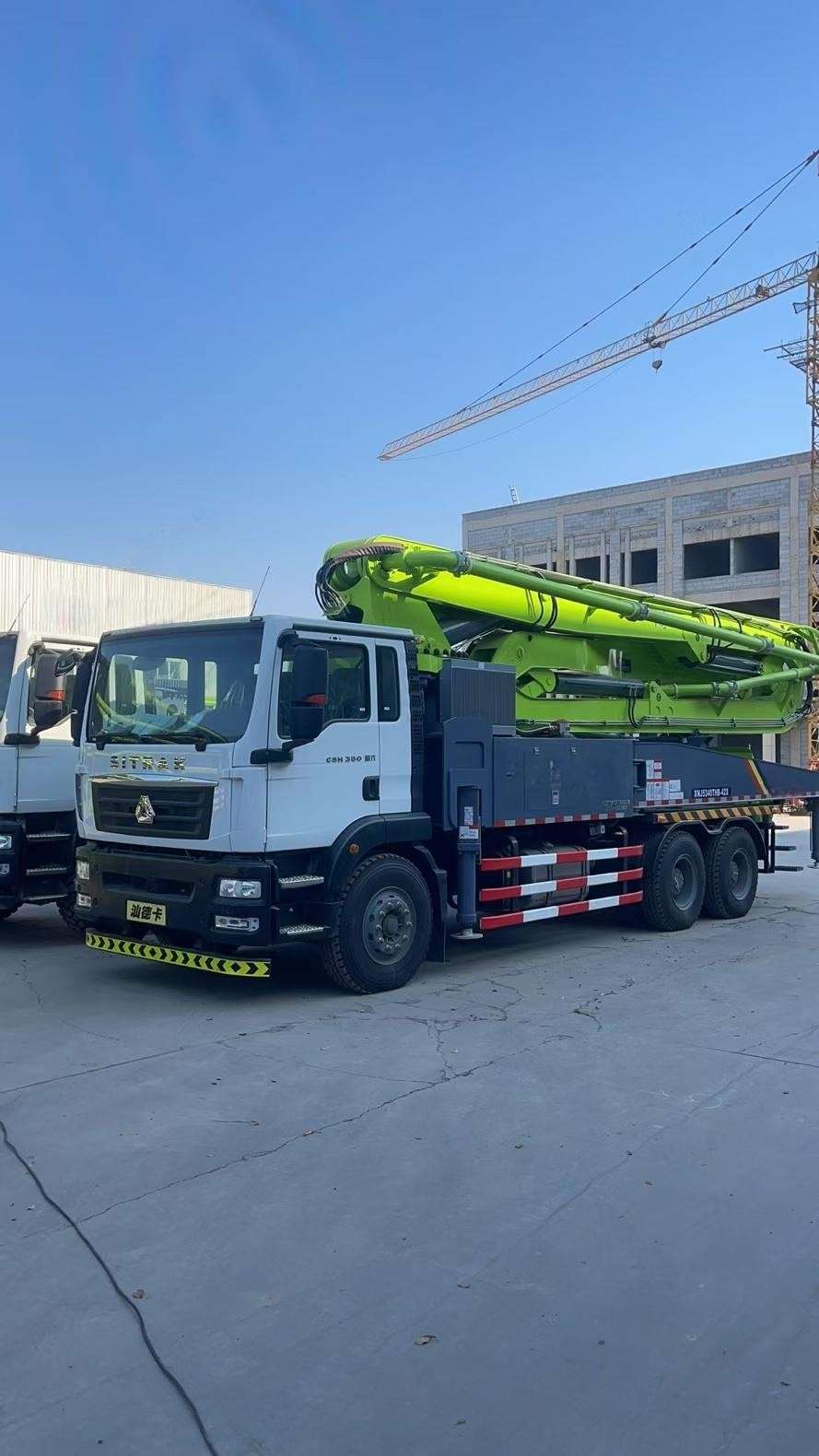

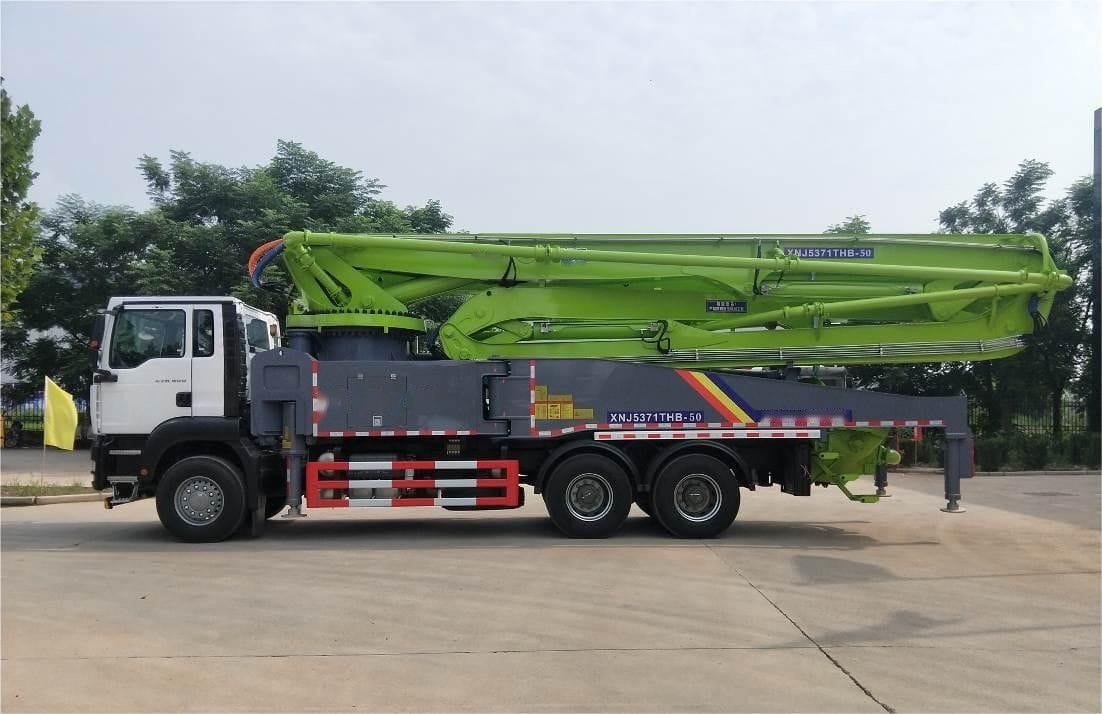

SITRUK CONCRETE PUMP – We Engineer Transport Vehicles to Power Global Logistics

Description

Model: XNJ5350THB				technical parameter	Model: XNJ5350THB			technical parameter
tractor parameter	overall length			12600mm	Pump system parameters	Theoretical concrete discharge	low pressure	163m3/h
	overall height			3950mm			high-handed	97m3/h
	total width			2550mm		Theoretical Pumping Pressure	low pressure	10MPa
	conduct oneself with dignity			35000Kg			high-handed	14 MPa
	Chassis Model			Shankar Truck		Theoretical Pumping Count	low pressure	32
	Drive mode			6×4			high-handed	19
	engine type			Germany		Distributor type		S established house or power group
	Output power/Speed			294kw/1900r/min		Delivery cylinder bore/diameter/Stroke		260/2200mm
	effluent standard			China VI		Main oil pump displacement		260ml/r
	Tire size			385/65R22.5/315/80R22.5,385/65R22.5/12.00R20		bucket capacity		^0.6m3
	wheel base			4650+1400mm		Feed height		1450mm
Arm Leg Parameters	Arm vertical height			50m		Conduit inner diameter		125mm
	Arm horizontal length			46m		Maximum aggregate size		40mm
	Arm vertical depth			36.5m		slump		160-220mm
	Arm folding mode			6RZ		System oil pressure		31.5MPa
	Arm 1		length	10000mm		Hydraulic tank capacity		700L
			corner	^89.5o		Hydraulic system type		open
	Second Arm		length	8250mm		High-low voltage switching		automatic switchover
			corner	^{180 o}		Hydraulic oil cooling method		forced air cooling
	Third Arm		length	8050mm		Concrete pipe cleaning method		wash
			corner	^{180 o}		lubricating system		centralization lubrication
	Section 4 Arm		length	9450mm	Accessories Brand	transfer case		German Spohr / Zuch
			corner	^243o		main oil pump		German Rexroth/Push
	Section 5 Arm		length	5750mm		Armway Multi-Valve		Hawthorne, Germany
			corner	^220o		Arm balance valve		German Rexroth/NEM
	Section 6 Arm		length	4300		valve bank		Eaton, USA
			corner	^110o		panel		Sweden import/Baosteel
	End delivery hose		length	3m		telecontroller		HBC/Jingjing/Om
	Repeater rotation angle			^{±360 o}		electrical equipment		Schneider/Omron
	Front leg spread width			9500mm
	Back leg spread width			9800mm
	Longitudinal distance between front and rear legs			10400mm
	Legs spread way	Front leg		X mould
		Back leg		initial movement in the circle

Product features:

High-end configuration: Featuring core components from premium international brands, with long-term strategic partnerships including German Spohr, Rexroth, Havell, HBC, Italian Wolf, NEM, and American Eaton.
Stable performance and low failure rate: Through 3D modeling and finite element analysis, the structure is more reasonable and the performance of the whole machine is more stable; through more than 20 years of market test, the failure rate is low;
High construction efficiency and wide construction range: equipped with automatic switching function of high and low voltage, pumping is adaptive, energy saving and efficient;
Strong human-computer interaction, easy operation of intelligent control, and simple troubleshooting.
