Description

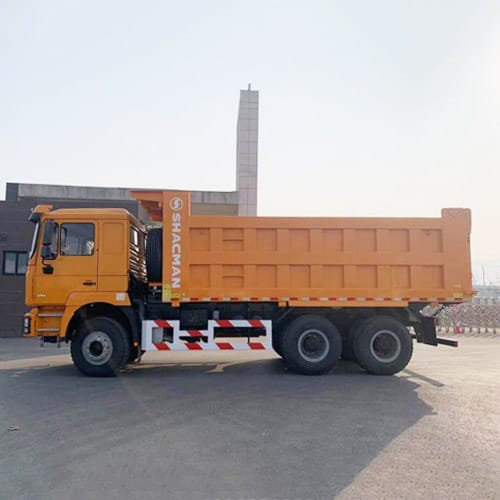

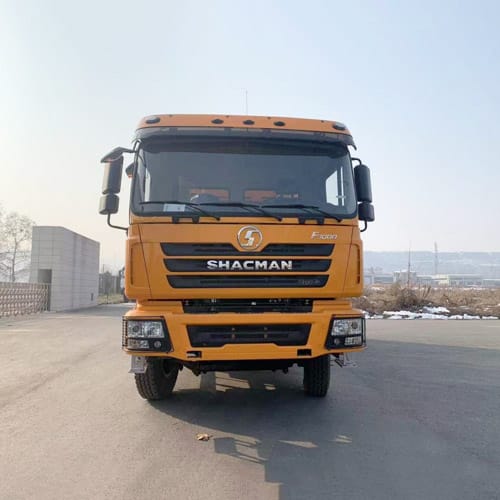

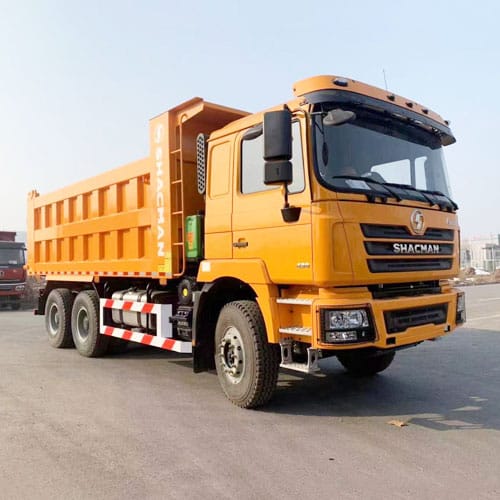

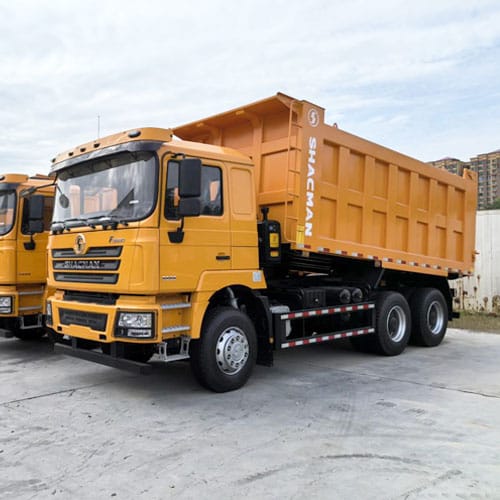

| SHACMAN F3000 6*4 Dump Truck | Specification |
|---|---|
| Model | SX3255DR384 |
| Driving Position | Left Rudder |
| Engine | Weichai WP10.380E22 |
| Emission Standard | Euro II |
| Speed Shifter | 10 JSD180-Iron Case – QH50 |
| Axle Speed Ratio | 16 T HD Two-stage Casting Axle – 5.92 |
| Frame (mm) | 850 * 300 (8 + 7) |
| Wheelbase (mm) | 3775 + 1400 |
| Front Axle | HD 9.5T Front Axle |
| Suspension | Multiple Springs Front and Rear, 4 Main Plates + 4 Auxiliary Plates |
| Fuel Tank | 400 L Iron Fuel Tank |
| Tire | 12 R22.5 Mixed Pattern |
| Top Dimensions (mm) | 5600 × 2300 × 1500 mm, Bottom 10 mm / Sides 8 mm |
Other configurations: F3000 medium and long flat roof driving room without top guide cover, hydraulic main seat, single sleeper, ordinary rearview mirror, hand shaking window machine, Manual flip, two-stage on-board pedal, no central lock, common steering wheel coupling, desert air filter, aluminum water tank, common exhaust, domestic steering gear, left front traction pin and rear traction seat, 165Ah maintenance-free battery heater, reinforced taillight grille, front and rear stabilizer bar, Silver lettering, 50T jacks, 2kg fire extinguisher, Economy toolbox with the car, Super version optional package 2 (steel bumper, reinforced plate spring, long-lasting coarse filter, front light protection grille, LED tail light protection stripe, rear bridge stabilizer, oil shell protection, systemic fuel theft protection, electric battery theft)
