Description
Driving position: Right & Left-hand drive both.
Engine: Weichai 430 horsepower engine.
Emission standard: Euro 2.
Transmission: 12JSD200T-B-iron casing-QH50
Axle ratio: 16T HD dual-stage cast bridge 5.262.
Frame dimensions (mm): 850 × 300 (8 + 7).
Wheelbase (mm): 1800 + 3575 + 1400
Front axle: MAN 9.5T
Suspension: front and rear multi-leaf springs, four main pieces + four horsebolt fasteners.
Fuel tank: 300L aluminum alloy.
Tires: 12R22.5 / 12.00R20 vacuum tires.

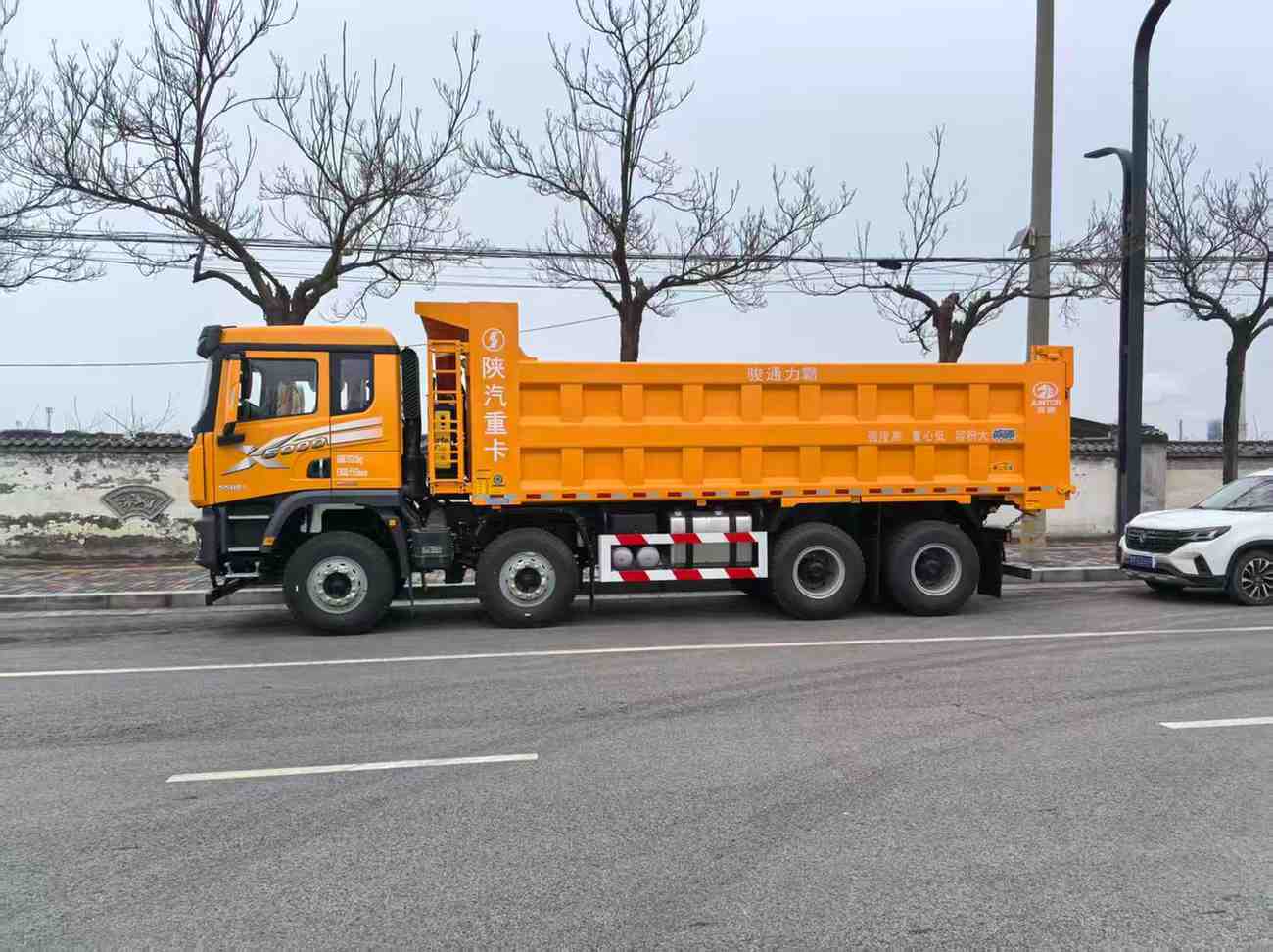

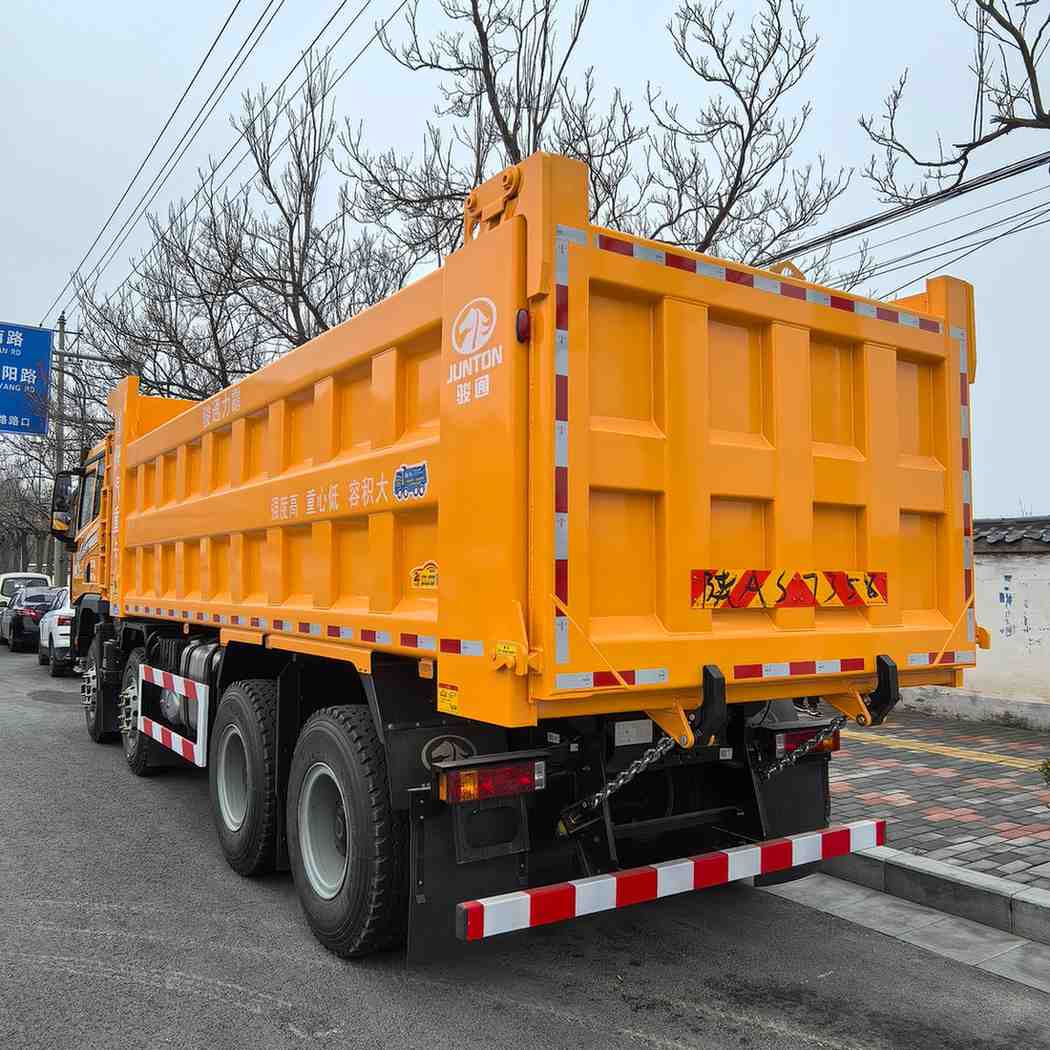

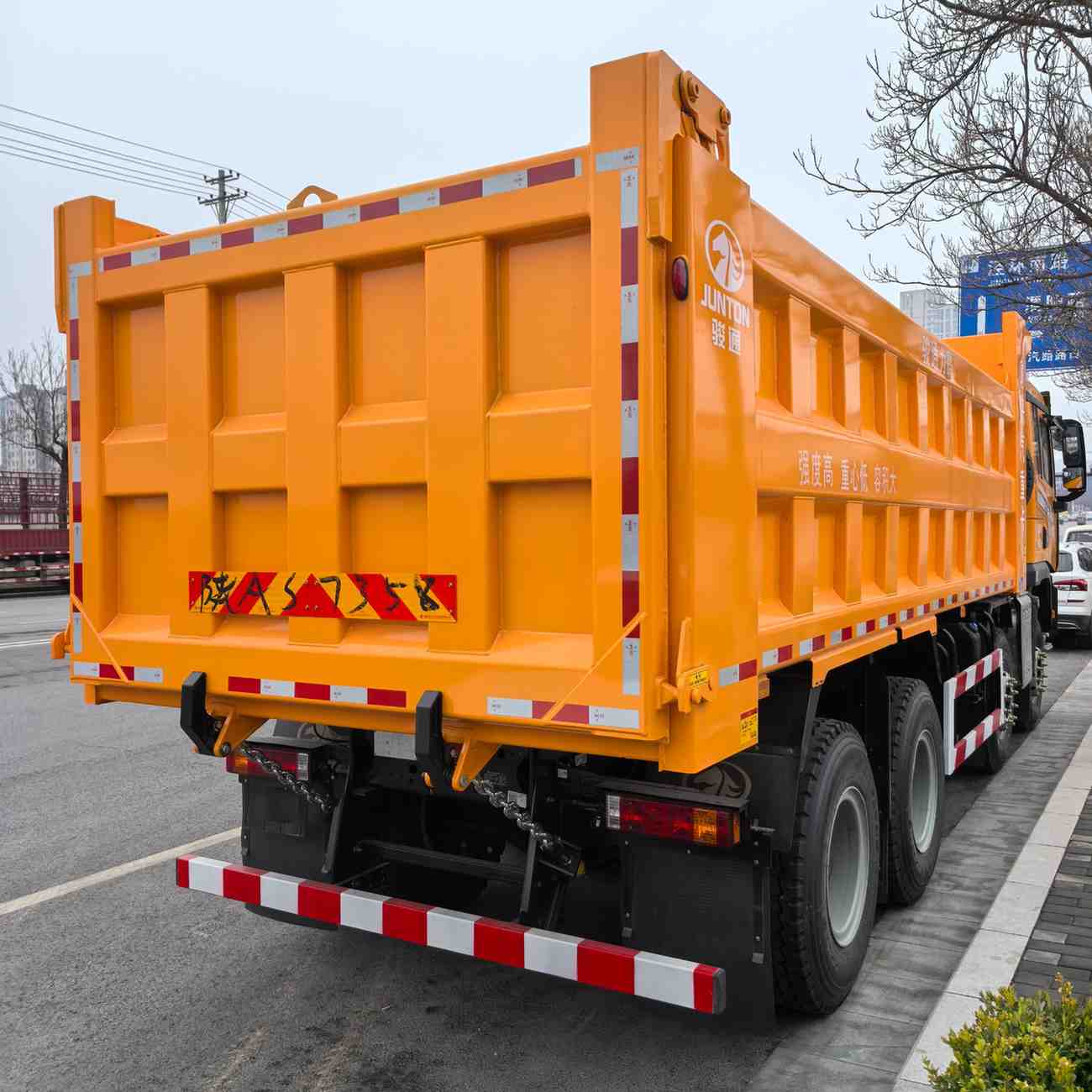

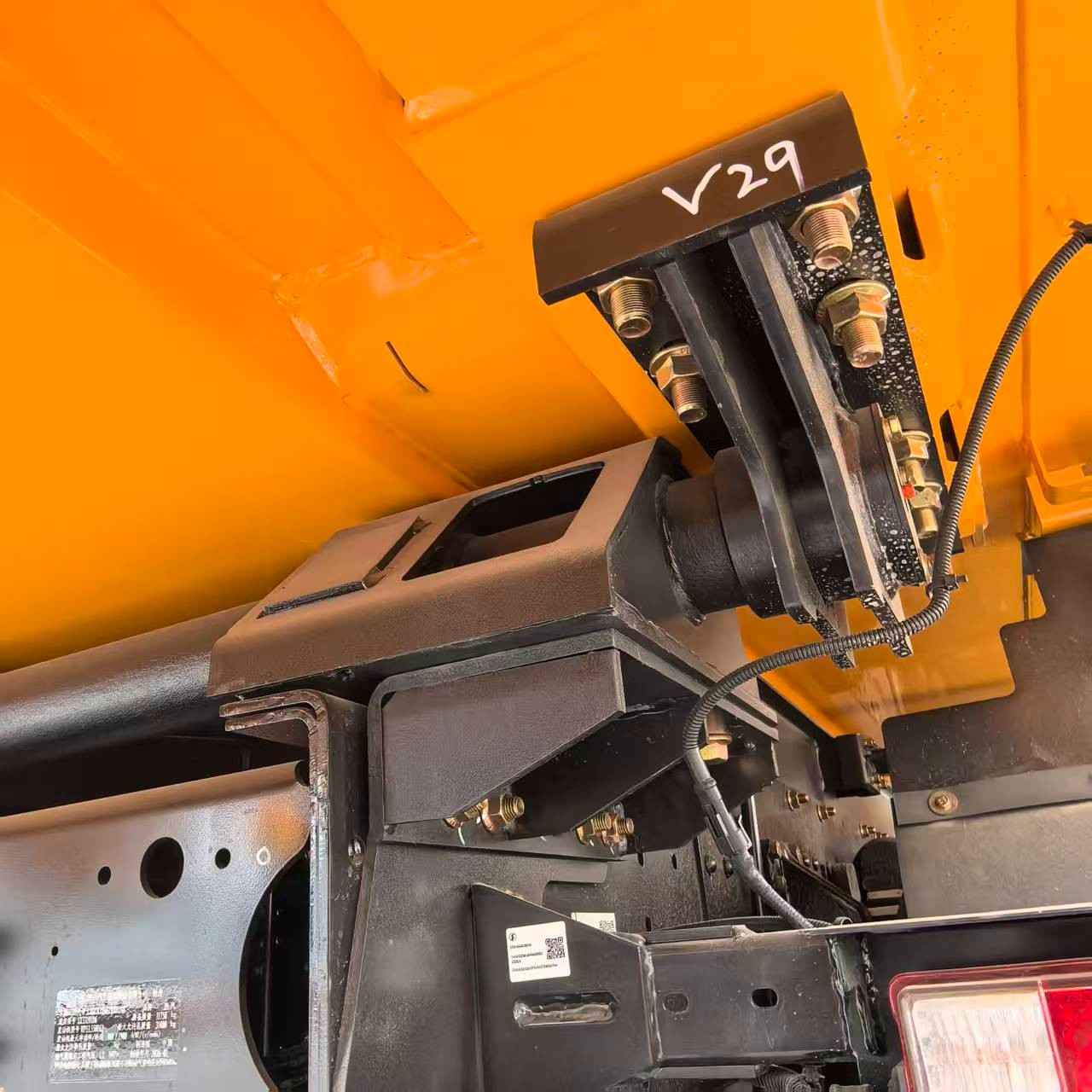

Large box: (mm) 7600 × 2300 × 1500; hydraulic cylinder: domestic-made.
Box thickness: (mm) bottom 8, sides 6.
Box shape: U-shaped and saqure checkerboard .

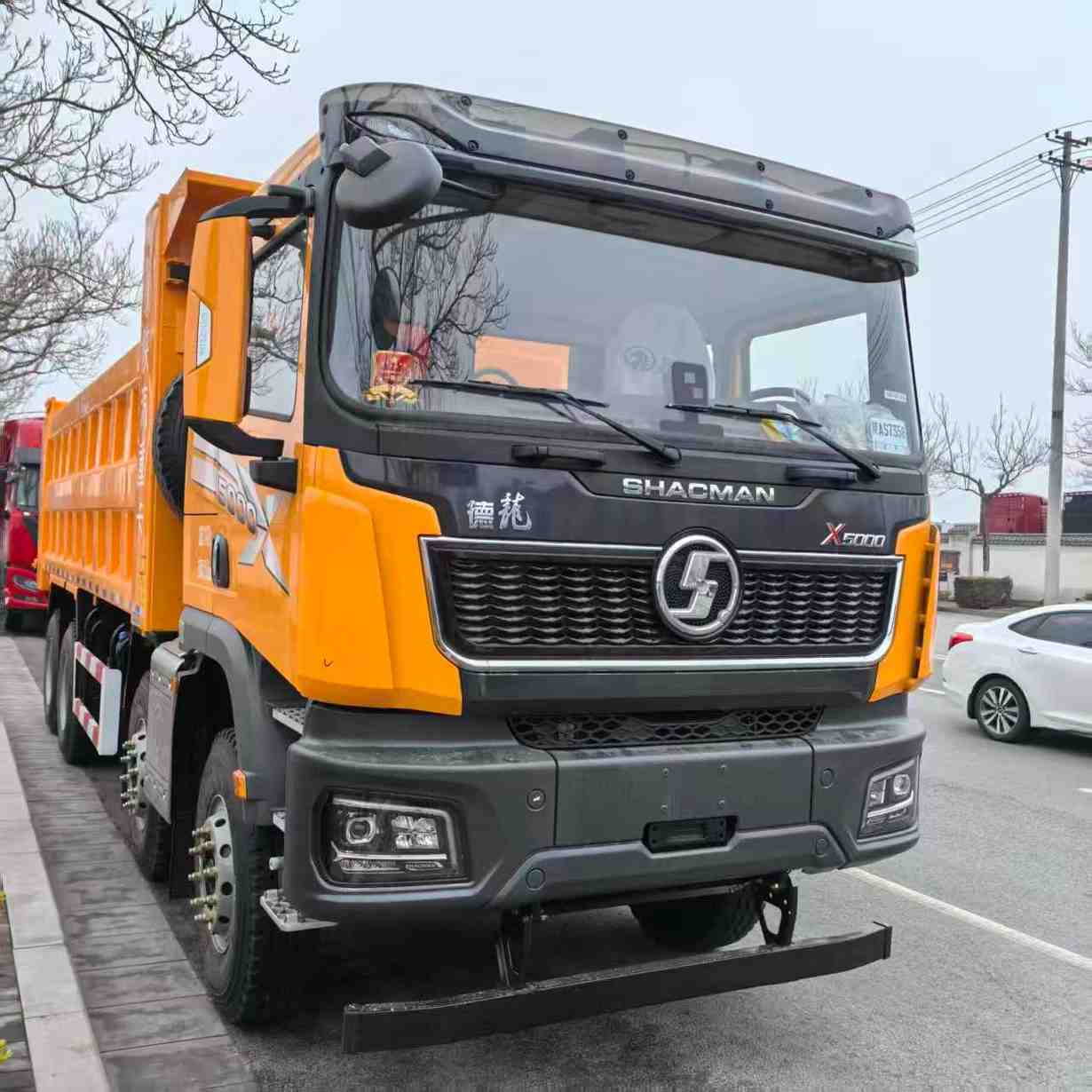

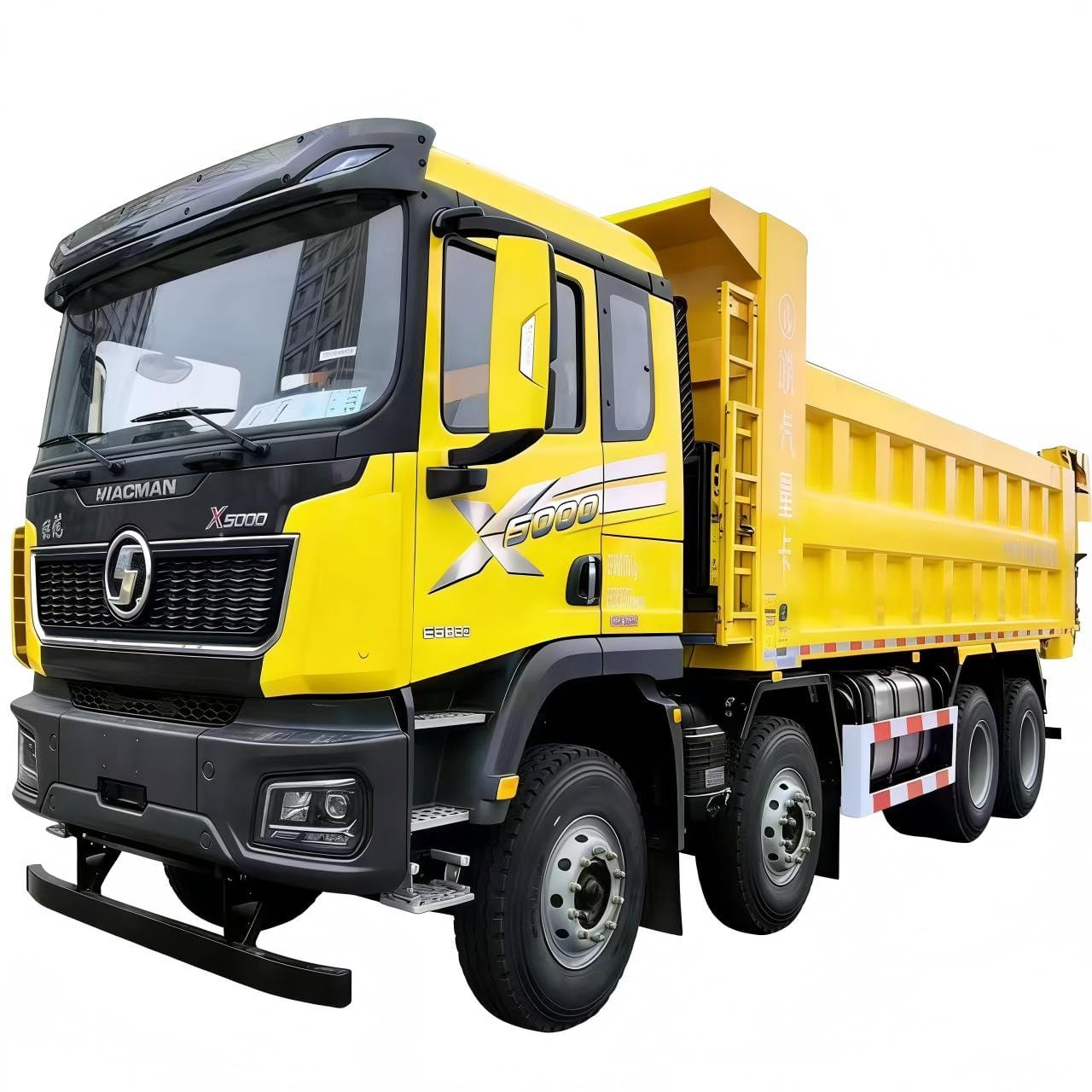

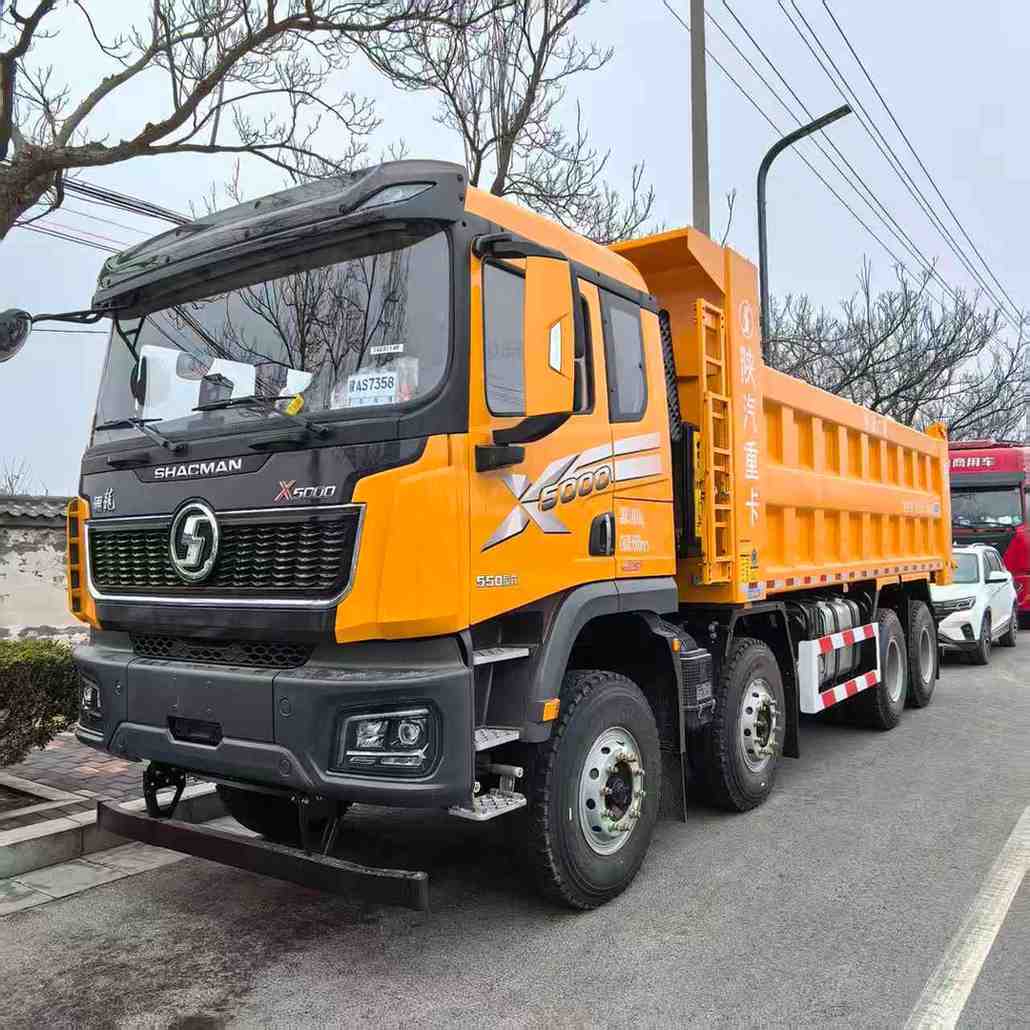

Additional features: The X5000 features a medium-length flat front cab without a top fairing, hydraulic main seats, standard rearview mirrors, electrically controlled automatic climate control, electric window lift mechanism (Ma Bu Qi motor), manual tilting, metal bumper with light guard mesh, three-level boarding steps, standard air filter, standard exhaust system, SHACMAN Telematics (only for the terminal), water tank protection grille, rear stabilizer bar, taillight guard, 180Ah maintenance-free battery, cab tilting, silver lettering and logo, SHACMAN emblem, full English signage, iron gas tank, reverse horn, 2 kg fire extinguisher, LED daytime running lights.
