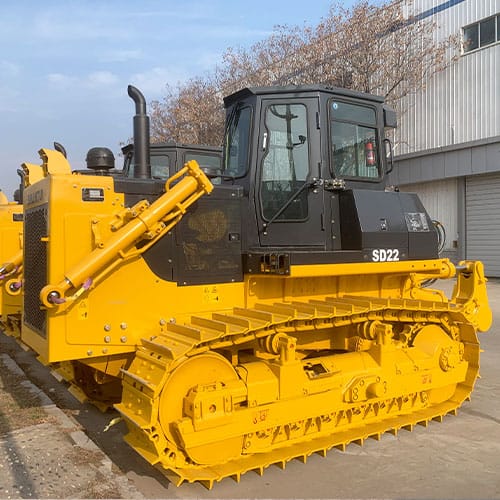

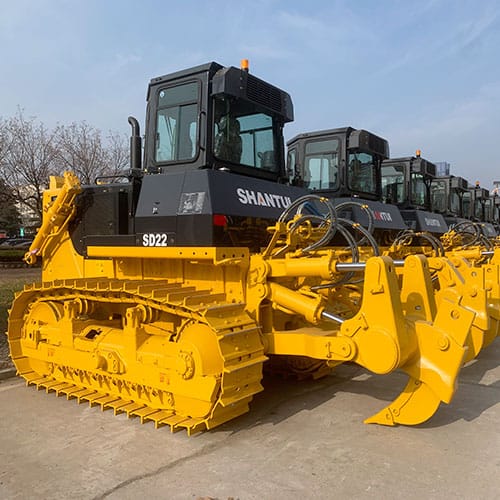

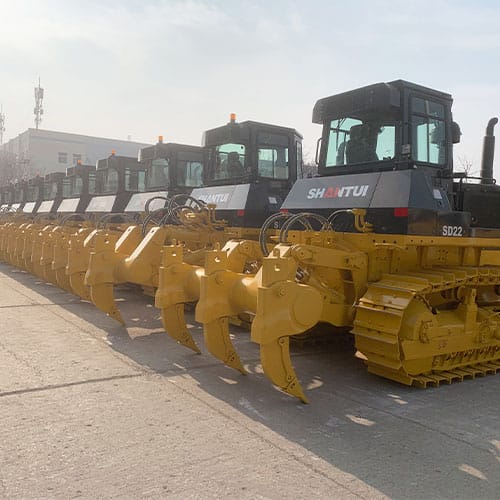

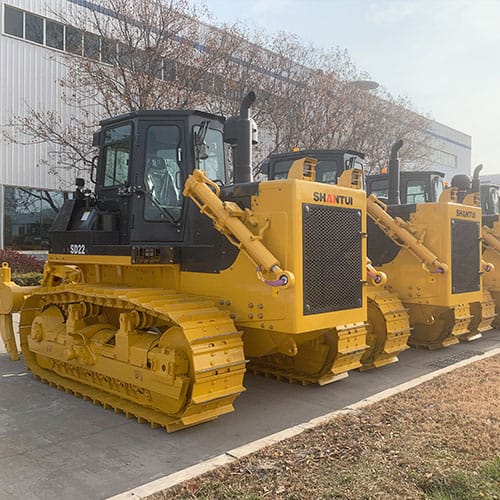

SD22

SD22
SD22 - Image 2
SD22 - Image 3
SD22 - Image 4
SD22 - Image 5

SD22

Category
  • High Load Capacity with Reinforced Structure
  • Heavy-Duty Performance for Extreme Working Conditions
  • Superior Durability with Premium Materials
  • High Operational Efficiency & Productivity
Served Globally
0 +
Products Available
0 +
  • Engineered with precision, built to last — our vehicles deliver uncompromising quality and performance.
  • Global ports at your fingertips, ensuring your orders reach their destination fast and reliably.
  • From concept to delivery, we handle every step so your logistics run smoothly, end to end.
Contact Us for More Details

Contact Us Via Email

info@zhimalitruck.com

Description

ENGINESD22/WSD22CSD22FSD22D/ESD22SSD22R
EngineCummins NT855-C280S10
EmissionChina-I
Rated revolution1800rpm
Gross power175kW(235hp)@1800rpm
Net power162kW(220hp)@1800rpm
Number of cylinder – bore×stroke6 – 140×152mm
Displacement14.01L
Max. torque1080N.m@1300rpm
Cooling systemMechanic fan
DRIVE SYSTEMSD22/WSD22CSD22FSD22D/ESD22SSD22R
Drive systemManufactured by SHANTUI, with high working efficiency, low breakdown rate, torque-flow transmission, 3 gears forward and 3 gears backward.
Traveling speed – ForwardF1: 13.6km/h, F2: 6.5km/h, F3: 11.2km/h
Traveling speed – BackwardR1: 4.3km/h, R2: 7.7km/h, R3: 13.2km/h
Max. theoretical traction force450kN
Torque converter3-element, single stage, 1-phase
TransmissionPlanetary gear and torque-flow transmission hydraulically actuated, forced lubrication
Central driveSpiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutchWet multiple disc, disc spring loaded, hydraulically actuated, hand operated, interconnected with steering brake.
Brake clutchWet, contracting band, foot operated with hydraulic booster
Final driveSpur gear, double reduction, splash lubrication
CHASSIS SYSTEMSD22/WSD22CSD22FSD22D/ESD22SSD22R
TypeSwing type of sprayed beam, suspended structure of equalizer bar
Track shoe typeSingle grouserWetland type
Track gauge2000mm2000mm2000mm2000mm2250mm2250mm
Width of track shoe560/610 / 660mm660mm610/ / 660mm560/610 / 660mm910mm910mm
Track grounding length2430mm2430mm2430mm3050mm3480mm3480mm
Track grounding area28727cm²40935cm²2430cm²38370cm²71476cm²71476cm²
Number of track shoe38pcs/side38pcs/side38pcs/side41pcs/side45pcs/side45pcs/side
Grounding pressure (standard configuration)66kPa57.5kPa64kPa66kPa36kPa35.2kPa
Number of carrier roller2pcs/side2pcs/side2pcs/side2pcs/side2pcs/side2pcs/side
Number of track roller6pcs/side6pcs/side6pcs/side7pcs/side8pcs/side8pcs/side
Pitch206mm206mm206mm206mm206mm206mm
REFILL CAPACITYSD22/WSD22CSD22FSD22D/ESD22SSD22R
Fuel capacity450L450L450L450L450L450L
Coolant liquid capacity79L79L79L79L79L79L
Engine oil capacity45L45L45L45L45L45L
Transmission122L122L122L122L122L122L
Drive axle110L110L110L110L110L110L
Final drive82L/side82L/side82L/side102L/side102L/side102L/side
OPERATING WEIGHTSD22/WSD22CSD22FSD22D/ESD22SSD22R
Operating weight(standard)23450kg24000kg24700kg25220kg25700kg26000kg
BLADESD22/WSD22CSD22FSD22D/ESD22SSD22R
Blade typeCoal-UStraight-tilt/Angle/Semi-U/UStraight-tiltWaste handling
Blade capacity8m³4.6/3.4/5.8/6.7m³5.2m³11.8m³
DIMENSIONSD22/WSD22CSD22FSD22D/ESD22SSD22R
Machine height3402mm3402mm3402mm3402mm3402mm3402mm
Track grouser height72mm72mm72mm72mm123mm (Wetland type)123mm (Wetland type)
Ground clearance405mm405mm405mm405mm513mm513mm
Machine length (without draw bar)6027mm5462mm5462mm5712mm6257mm6257mm
Machine length (with draw bar)6060mm5495mm5495mm5495mm6290mm6290mm
Max. lifting height of blade1210mm1210mm1210mm1210mm1330mm1330mm
Max. digging depth of blade540mm540mm540mm540mm550mm550mm
Digging angle of blade55°±3°(deg.)
Blade width4200mm3725/3685/3800/3725mm4365mm
Blade height1350mm1315/1055/1343/1374mm1248mm1885mm
Width from end of left track shoe to end of right track shoe (standard)3000mm3000mm3000mm3000mm3800mm3800mm
TypeThree-shank ripperSingle shank ripper
TypeThree-shank ripperSingle shank ripper
Weight2600kg2450kg
Max. ripping depth666mm695mm
Max. lifting height555mm515mm
Ripper length (at deepest ripping)1781mm1974mm
Ripper width2158mm1426mm
Departure angle (at highest lifting)25.5°25.5°
Ripping width2000mm / 106mm2000mm/106mm
Distance between ripper teeth930mm–

You May Also Like

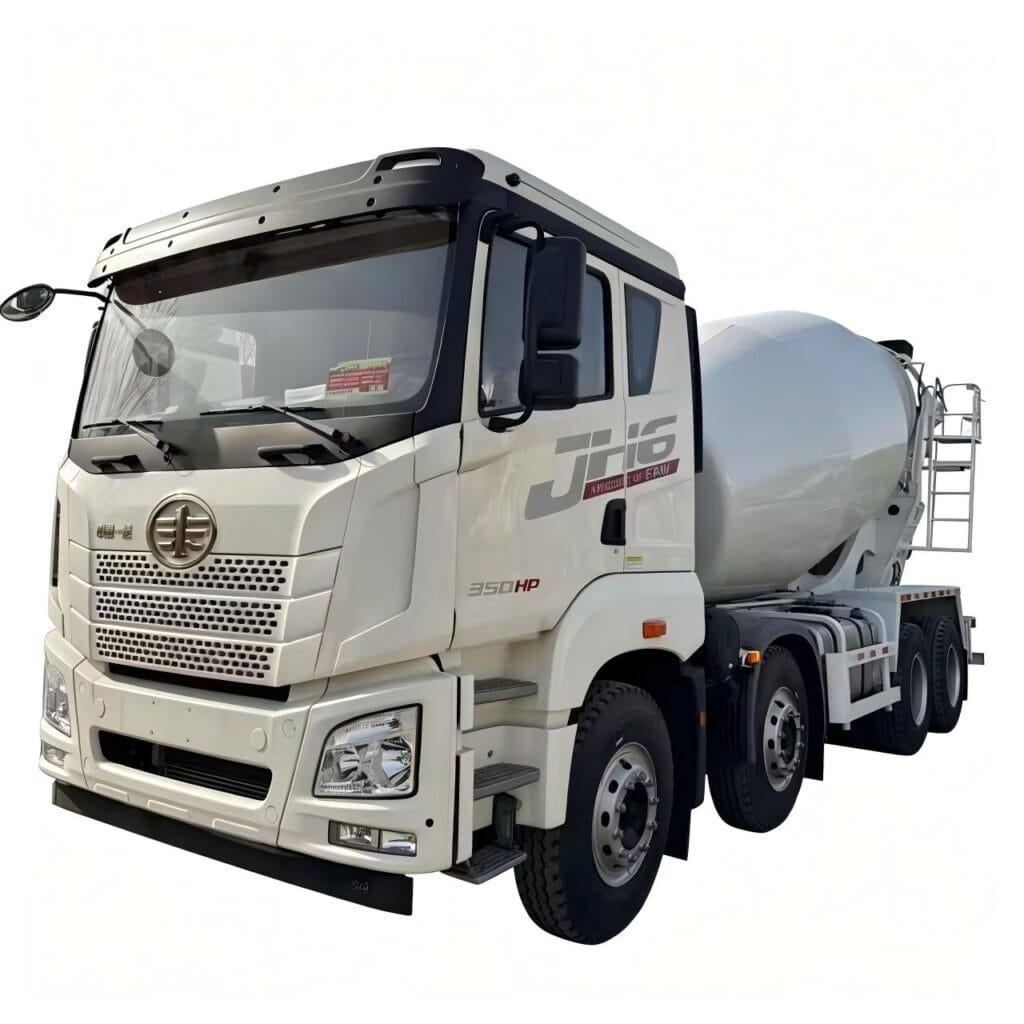

FAW 8×4 mixer truck

View Details

25t carne

View Details

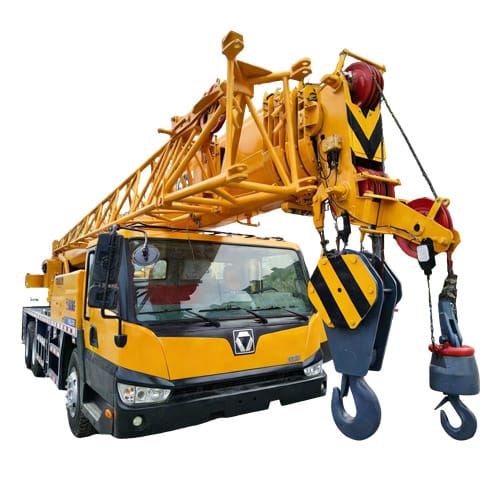

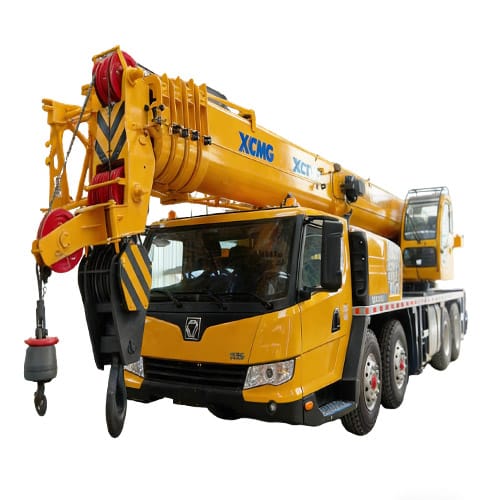

50T crane

View Details

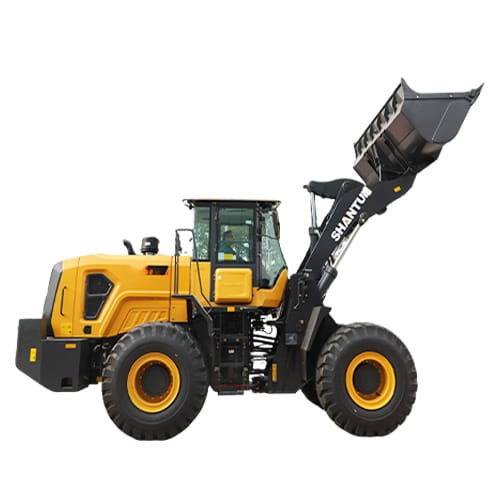

Loader L68K-B5

View Details

SD22

Description

ENGINESD22/WSD22CSD22FSD22D/ESD22SSD22R
EngineCummins NT855-C280S10
EmissionChina-I
Rated revolution1800rpm
Gross power175kW(235hp)@1800rpm
Net power162kW(220hp)@1800rpm
Number of cylinder – bore×stroke6 – 140×152mm
Displacement14.01L
Max. torque1080N.m@1300rpm
Cooling systemMechanic fan
DRIVE SYSTEMSD22/WSD22CSD22FSD22D/ESD22SSD22R
Drive systemManufactured by SHANTUI, with high working efficiency, low breakdown rate, torque-flow transmission, 3 gears forward and 3 gears backward.
Traveling speed – ForwardF1: 13.6km/h, F2: 6.5km/h, F3: 11.2km/h
Traveling speed – BackwardR1: 4.3km/h, R2: 7.7km/h, R3: 13.2km/h
Max. theoretical traction force450kN
Torque converter3-element, single stage, 1-phase
TransmissionPlanetary gear and torque-flow transmission hydraulically actuated, forced lubrication
Central driveSpiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutchWet multiple disc, disc spring loaded, hydraulically actuated, hand operated, interconnected with steering brake.
Brake clutchWet, contracting band, foot operated with hydraulic booster
Final driveSpur gear, double reduction, splash lubrication
CHASSIS SYSTEMSD22/WSD22CSD22FSD22D/ESD22SSD22R
TypeSwing type of sprayed beam, suspended structure of equalizer bar
Track shoe typeSingle grouserWetland type
Track gauge2000mm2000mm2000mm2000mm2250mm2250mm
Width of track shoe560/610 / 660mm660mm610/ / 660mm560/610 / 660mm910mm910mm
Track grounding length2430mm2430mm2430mm3050mm3480mm3480mm
Track grounding area28727cm²40935cm²2430cm²38370cm²71476cm²71476cm²
Number of track shoe38pcs/side38pcs/side38pcs/side41pcs/side45pcs/side45pcs/side
Grounding pressure (standard configuration)66kPa57.5kPa64kPa66kPa36kPa35.2kPa
Number of carrier roller2pcs/side2pcs/side2pcs/side2pcs/side2pcs/side2pcs/side
Number of track roller6pcs/side6pcs/side6pcs/side7pcs/side8pcs/side8pcs/side
Pitch206mm206mm206mm206mm206mm206mm
REFILL CAPACITYSD22/WSD22CSD22FSD22D/ESD22SSD22R
Fuel capacity450L450L450L450L450L450L
Coolant liquid capacity79L79L79L79L79L79L
Engine oil capacity45L45L45L45L45L45L
Transmission122L122L122L122L122L122L
Drive axle110L110L110L110L110L110L
Final drive82L/side82L/side82L/side102L/side102L/side102L/side
OPERATING WEIGHTSD22/WSD22CSD22FSD22D/ESD22SSD22R
Operating weight(standard)23450kg24000kg24700kg25220kg25700kg26000kg
BLADESD22/WSD22CSD22FSD22D/ESD22SSD22R
Blade typeCoal-UStraight-tilt/Angle/Semi-U/UStraight-tiltWaste handling
Blade capacity8m³4.6/3.4/5.8/6.7m³5.2m³11.8m³
DIMENSIONSD22/WSD22CSD22FSD22D/ESD22SSD22R
Machine height3402mm3402mm3402mm3402mm3402mm3402mm
Track grouser height72mm72mm72mm72mm123mm (Wetland type)123mm (Wetland type)
Ground clearance405mm405mm405mm405mm513mm513mm
Machine length (without draw bar)6027mm5462mm5462mm5712mm6257mm6257mm
Machine length (with draw bar)6060mm5495mm5495mm5495mm6290mm6290mm
Max. lifting height of blade1210mm1210mm1210mm1210mm1330mm1330mm
Max. digging depth of blade540mm540mm540mm540mm550mm550mm
Digging angle of blade55°±3°(deg.)
Blade width4200mm3725/3685/3800/3725mm4365mm
Blade height1350mm1315/1055/1343/1374mm1248mm1885mm
Width from end of left track shoe to end of right track shoe (standard)3000mm3000mm3000mm3000mm3800mm3800mm
TypeThree-shank ripperSingle shank ripper
TypeThree-shank ripperSingle shank ripper
Weight2600kg2450kg
Max. ripping depth666mm695mm
Max. lifting height555mm515mm
Ripper length (at deepest ripping)1781mm1974mm
Ripper width2158mm1426mm
Departure angle (at highest lifting)25.5°25.5°
Ripping width2000mm / 106mm2000mm/106mm
Distance between ripper teeth930mm–

Heavy-duty construction equipment built to withstand the rigors of infrastructure projects.

SD22
SD22 - Image 2
SD22 - Image 3
SD22 - Image 4
SD22 - Image 5

Get in touch

Corporate Email

info@zhimalicar.com

Get Your Logistics Plan Now

Do you have any question?

What types of vehicles does Zhimali manufacture?

We specialize in the R&D, manufacturing and sales of a full range of semi-trailers and specialized transport vehicles. Our core products include cargo net semi-trailers, curtain-sided semi-trailers, lowbed trailers, container transport semi-trailers, bulk cement trucks, blade transport vehicles, and other custom special transport equipment.

Yes, we offer comprehensive customization services. Our engineering team can tailor vehicles according to your specific needs, including adjusting deck structures, upgrading axle systems, adding corrosion-resistant coatings, and designing specialized hydraulic devices for heavy or oversized cargo transport.

We adopt advanced manufacturing processes, select high-quality raw materials and top-standard components, and strictly follow a reliable quality control system throughout production. All products undergo rigorous performance and safety testing before delivery to ensure durability and stability.

Our products are sold nationwide in China and exported to more than 50 countries and regions, including Russia, Central Asia, Africa, Southeast Asia, Saudi Arabia, India, Myanmar, Vietnam and Thailand.

Located in Liangshan with convenient transportation networks, we have easy access to major ports across China. We provide one-stop export support including customs clearance, documentation preparation and shipment tracking, ensuring your orders are delivered on time and efficiently.

Yes. We have established a global after-sales service network to provide overseas clients with maintenance guidance and technical consultation services. Our professional support team ensures prompt responses, guaranteeing the efficient resolution of all client issues.

Global Shipping, Seamless Delivery

Whether by Land or Sea, We Get Your Trucks to Their Destination Safely & On Time

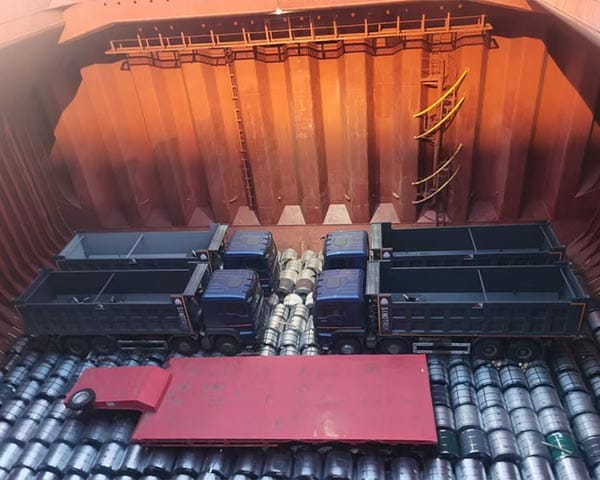

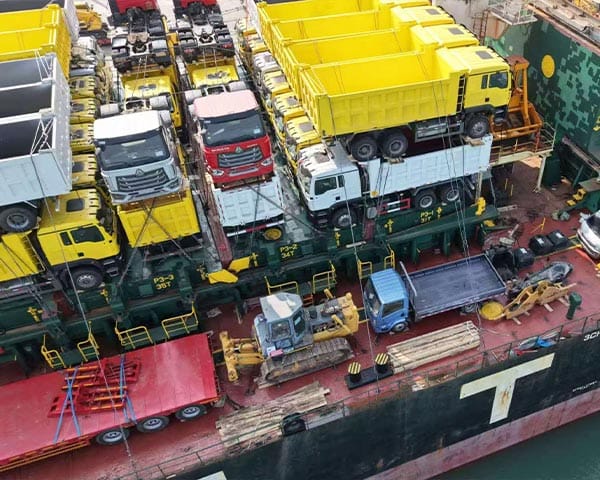

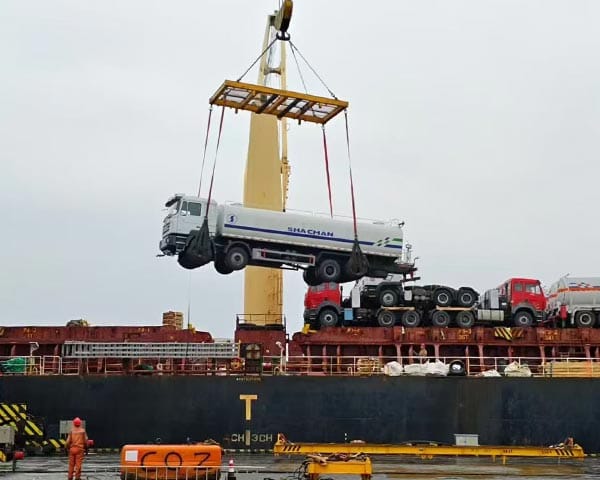

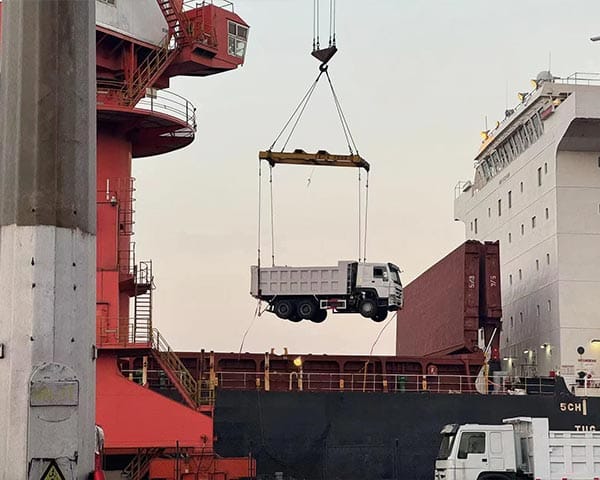

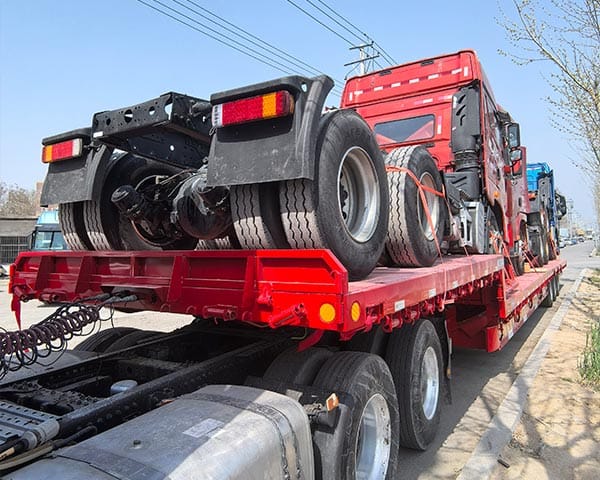

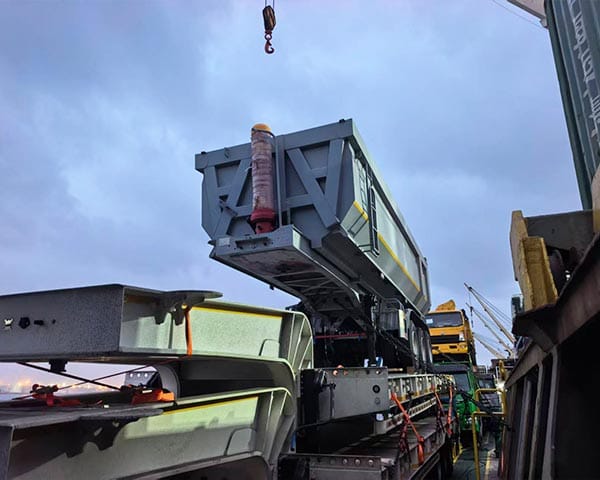

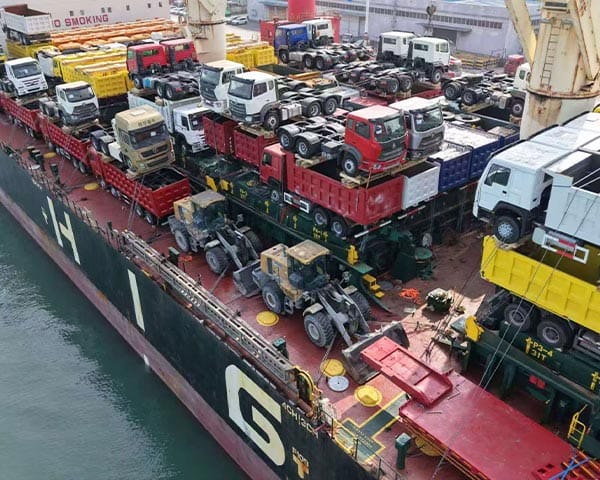

Multi-Modal Shipping
