What types of vehicles does Zhimali manufacture?

We specialize in the R&D, manufacturing and sales of a full range of semi-trailers and specialized transport vehicles. Our core products include cargo net semi-trailers, curtain-sided semi-trailers, lowbed trailers, container transport semi-trailers, bulk cement trucks, blade transport vehicles, and other custom special transport equipment.

an Zhimali provide customized vehicle solutions?

Yes, we offer comprehensive customization services. Our engineering team can tailor vehicles according to your specific needs, including adjusting deck structures, upgrading axle systems, adding corrosion-resistant coatings, and designing specialized hydraulic devices for heavy or oversized cargo transport.

What quality assurance does Zhimali provide for its products?

We adopt advanced manufacturing processes, select high-quality raw materials and top-standard components, and strictly follow a reliable quality control system throughout production. All products undergo rigorous performance and safety testing before delivery to ensure durability and stability.

Which countries and regions do Zhimali's products cover?

Our products are sold nationwide in China and exported to more than 50 countries and regions, including Russia, Central Asia, Africa, Southeast Asia, Saudi Arabia, India, Myanmar, Vietnam and Thailand.

How does Zhimali ensure efficient export logistics?

Located in Liangshan with convenient transportation networks, we have easy access to major ports across China. We provide one-stop export support including customs clearance, documentation preparation and shipment tracking, ensuring your orders are delivered on time and efficiently.

Does Zhimali offer after-sales service for overseas customers?

Yes. We have established a global after-sales service network to provide overseas clients with maintenance guidance and technical consultation services. Our professional support team ensures prompt responses, guaranteeing the efficient resolution of all client issues.

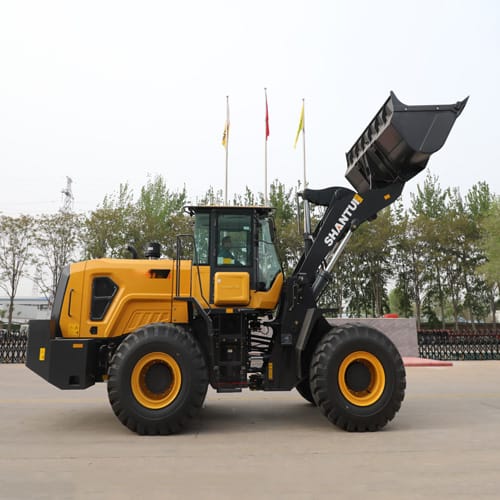

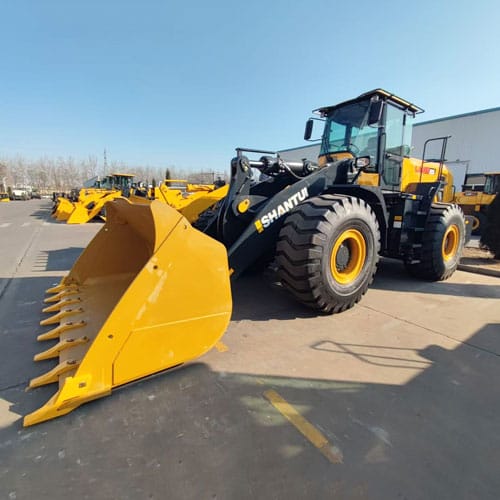

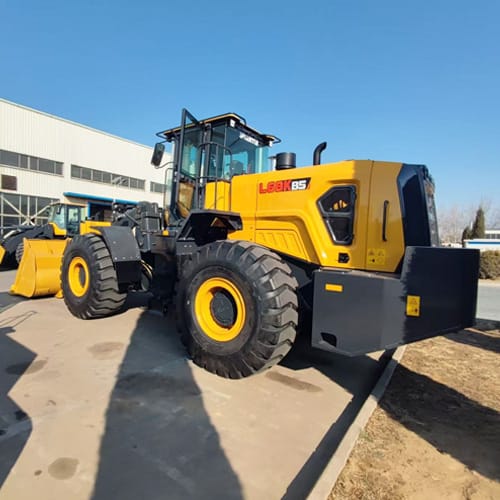

Loader L68K-B5 – We Engineer Transport Vehicles to Power Global Logistics

Description

Engine Model: Weichai WD10G240E201
Gross Power: 178kW@2200rpm
Operating Weight: 22,500kg
Bucket Capacity: 4m³

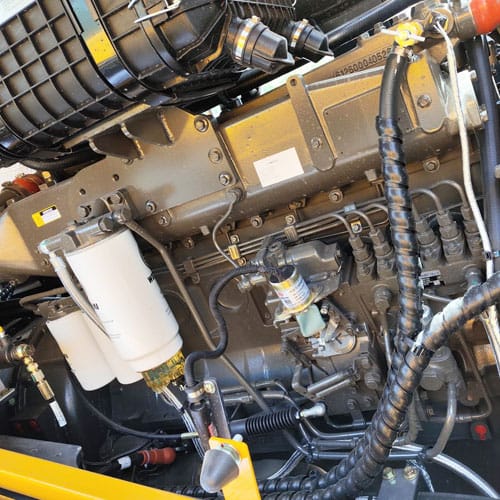

ENGINE

Item	Specification
Emission Regulation	Tier 2/Stage II
Make	Weichai
Model	WD10G240E201
Rated Power	178kW @ 2200 rpm
Max Torque	100 N·m
Displacement	9.726L
Number of Cylinders	6
Aspiration	Turbocharged

LOADER ARM PERFORMANCE

Item	Specification
Tipping Load – Full Turn	137 kN
Bucket Breakout Force	205 kN
Maximum Dump Angle at Full Height	45°
Dump Clearance at Full Height Discharge	3480 mm
Dump Reach at Full Height Discharge	1300 mm
Maximum Hinge Pin Height	4718 mm
Maximum Digging Depth, Bucket Level	80 mm
Bucket Capacity	4 m³
Operating Weight	22500 kg

TRANSMISSION

Item	Specification
Transmission Type	Planetary, power shift
Torque Converter	Single stage, four elements
Maximum Travel Speed, fwd	37 km/h
Maximum Travel Speed, rev	16 km/h
Number of Speeds, fwd	2
Number of Speeds, rev	1

AXLES

Item	Specification
Differential Front Type	–
Differential Rear Type	–
Axle Oscillation	±12°

STEERING

Item	Specification
Steering Configuration	Articulated
Steering System Pressure	18 Mpa

BRAKES

Item	Specification
Service Brake Type	Caliper disc brake
Service Brake Actuation	Air over Hydraulic
Parking Brake Type	Airbrake
Parking Brake Actuation	Mechanical

TIRES

Item	Specification
Tire Size	26.5-25

HYDRAULIC SYSTEM

Item	Specification
Main Pump Type	Gear
Main Relief Pressure	21 Mpa
Raise time	5.3 S
Total Cycle Time	9.97 S

SERVICE CAPACITY

Item	Specification
Fuel Tank	330 L
Hydraulic Oil Tank	255 L
Engine Oil	21 L
Axles, each	41L×2
Transmission	45 L
Antifreeze	80 L

DIMENSIONS

Item	Specification
Length	9320 mm
Width	3080 mm
Height	3570 mm
Wheelbase	3500 mm
Wheel Tread	2250 mm
Ground Clearance	510 mm
Turn Angle, Either Side	35°
Turning Radius, Outside of Tire	6955 mm
Turning Radius, Center of Tire	6675 mm
Turning Radius, Bucket Carry	7686 mm
