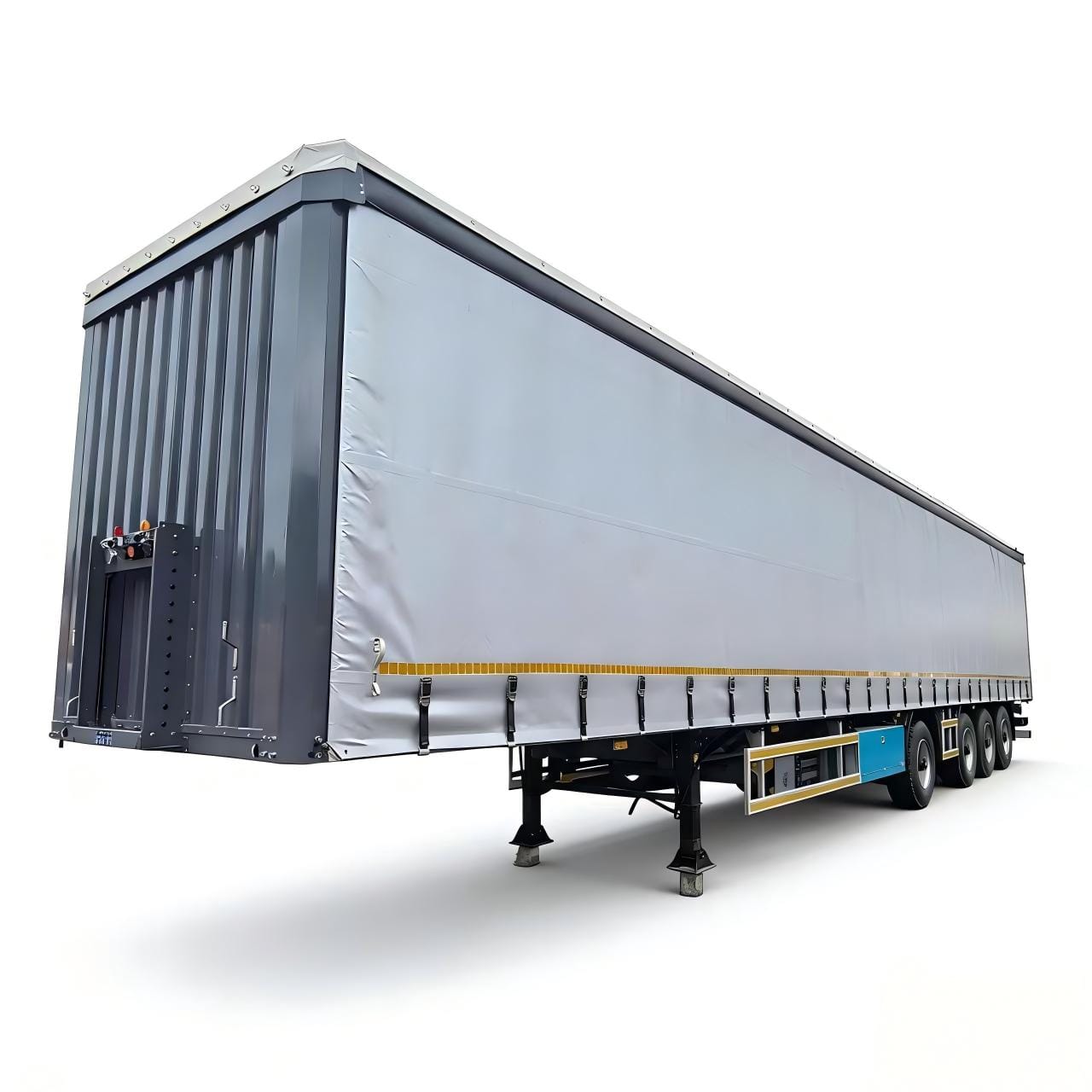

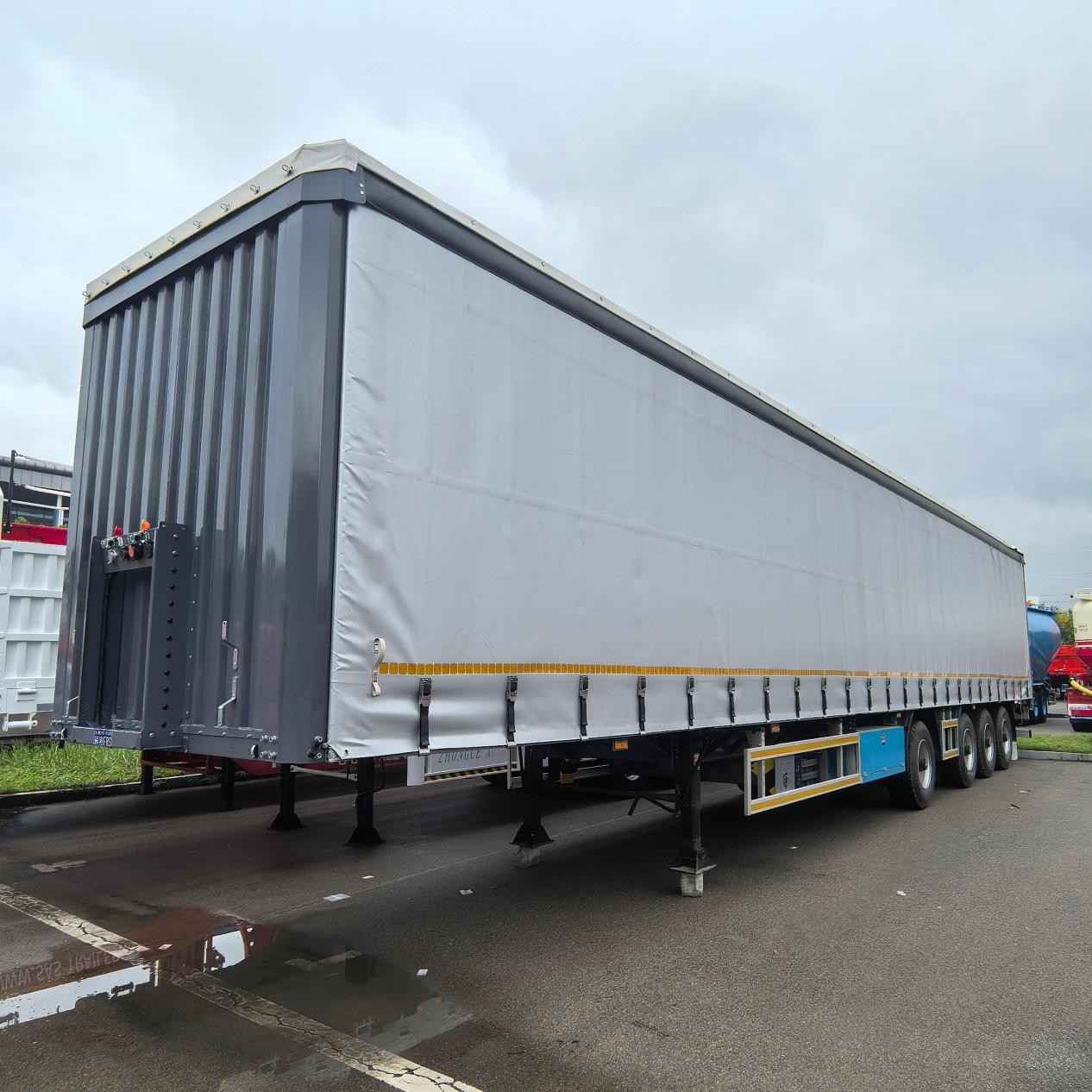

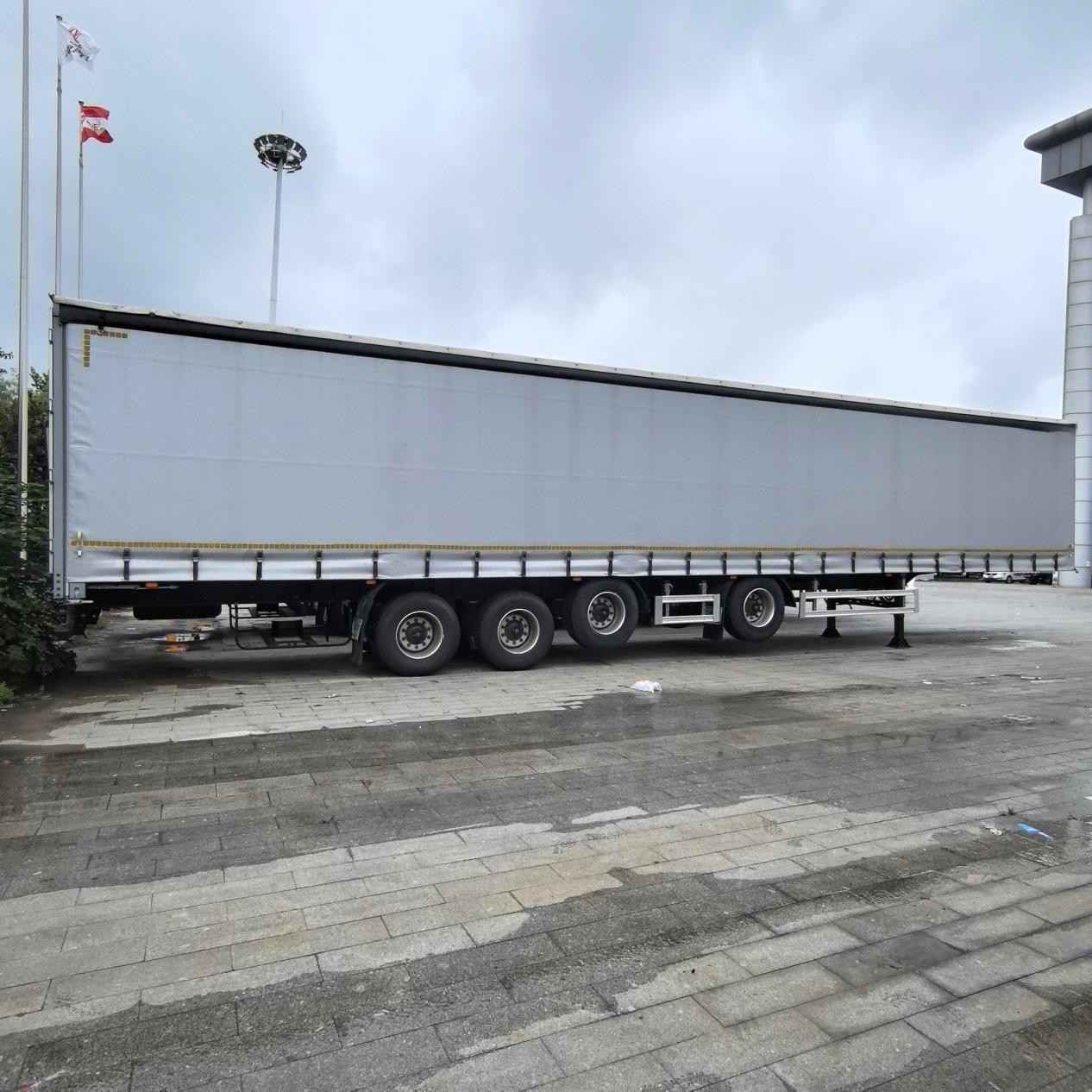

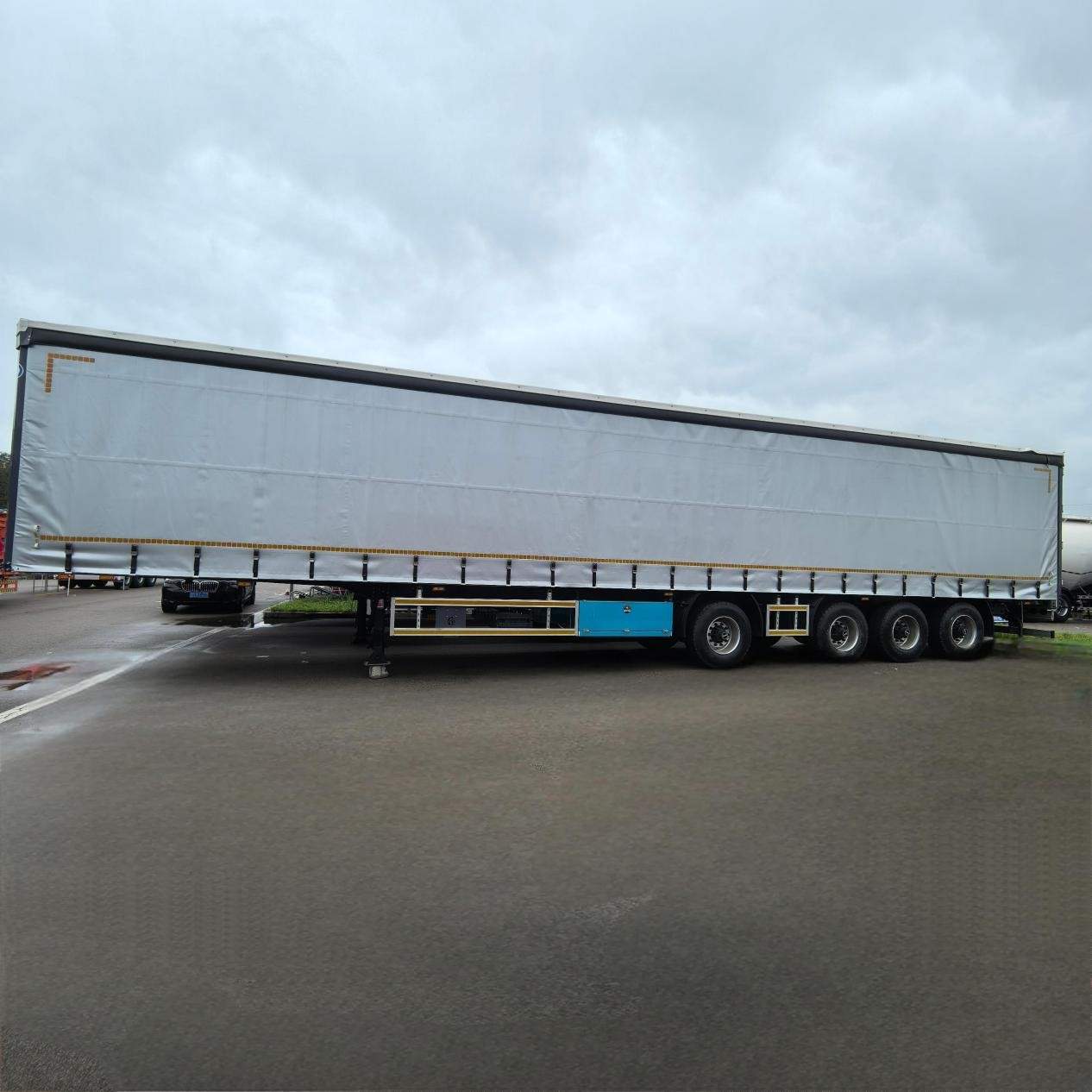

Description
| Length/Width/Height | 13750mm*2550mm*4000mm | |
| axle | Zhongyang 13T Disc Brake Extended Bridge 2050 with Nub Plate and Rui Li Caliper | 4 |
| tyre | Shuangqian 385-55R22.5 | 8 |
| rim | 11.75-22.5 | 8 |
| suspension | Air suspension/mechanical suspension | package |
| air sac | Full lift-and-lift mechanism with front axle elevation (WABCO airbag valve) | |
| summer beam | Upper wing panel: 480mm thick and 140mm wide; lower wing panel: 12mm thick and 140mm wide; vertical panel: 6mm thick | |
| boundary beam | External hook, steel section 3.0# | |
| Cross-section title | Bent piece | |
| baseboard | 28mm thick bamboo plywood with crack-filling adhesive | |
| ABS | FUWA/WABCD with indicator light, EU certified | 1 set |
| hold-all | Aluminum alloy (m) 1*0.6*0.5 | 1 |
| Backup tire rack | 1 activity frame | |
| air reservoir air receiver | alufer | 2 |
| protective screening | Active Style | alufer |
| bumper | The rear bumper is fully integrated and movable. | alufer |

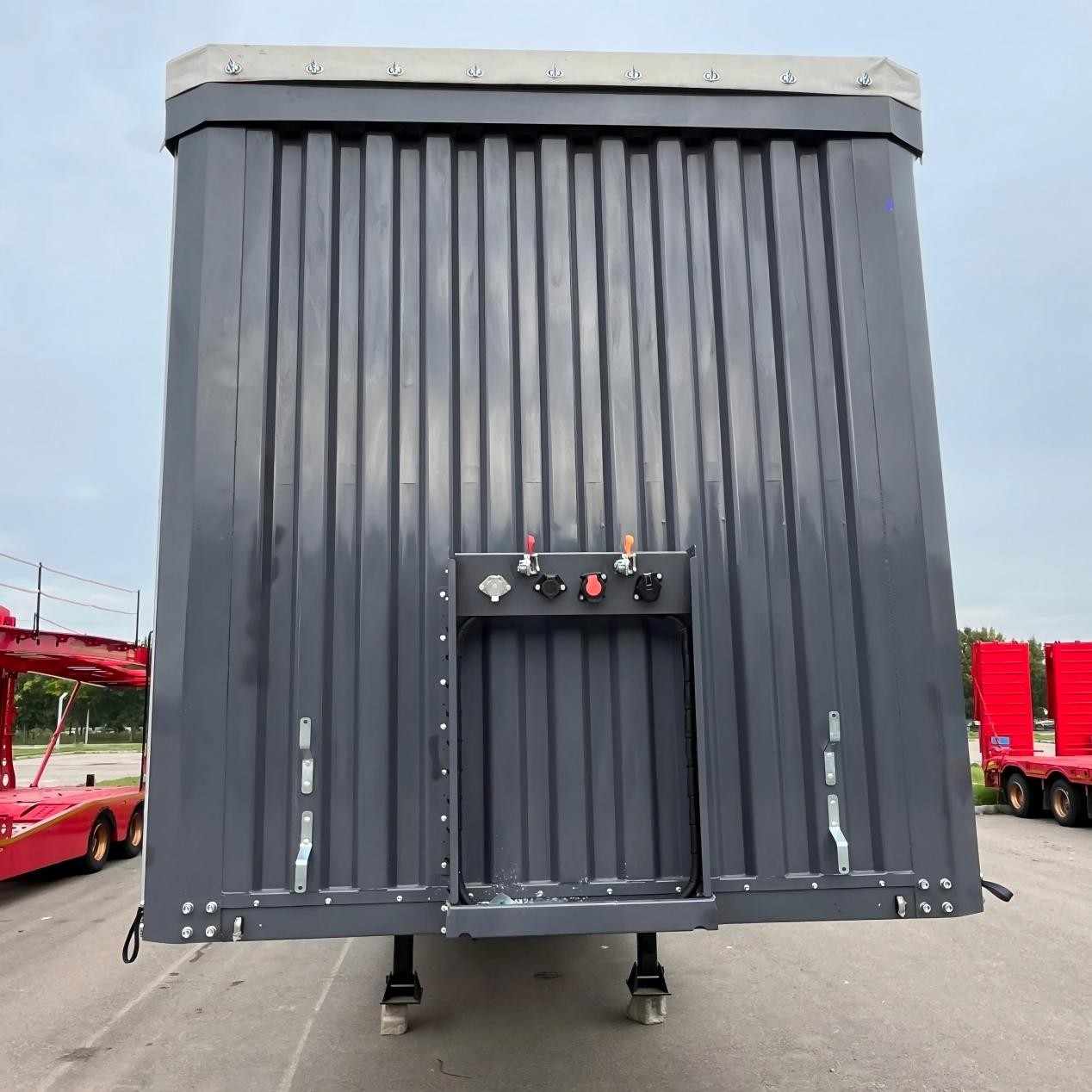

| Front | The front panel should be flexible, with vertical corrugated edges. | Iron parts |
| landing leg | FUWA/JOST/Factory Parts | |
| brake chamber | Hankwe | 6 pairs |
| Brake air circuit | Export low-temperature resistant | |
| source | Anti-freeze and moisture | |
| lamps and lanterns | South hanging lamps and wires, EU certified | |
| Bumpstop | Clay-caking agent for masonry, southern wall application, with anti-splash mud coating | |
| Traction pin | JOST 2-inch (50mm) or 3.5-inch (90mm) | |
| roof side rail | Square tube with iron rail | |
| upright column | Front and rear bent parts | |
| relay valve | WABCO | |

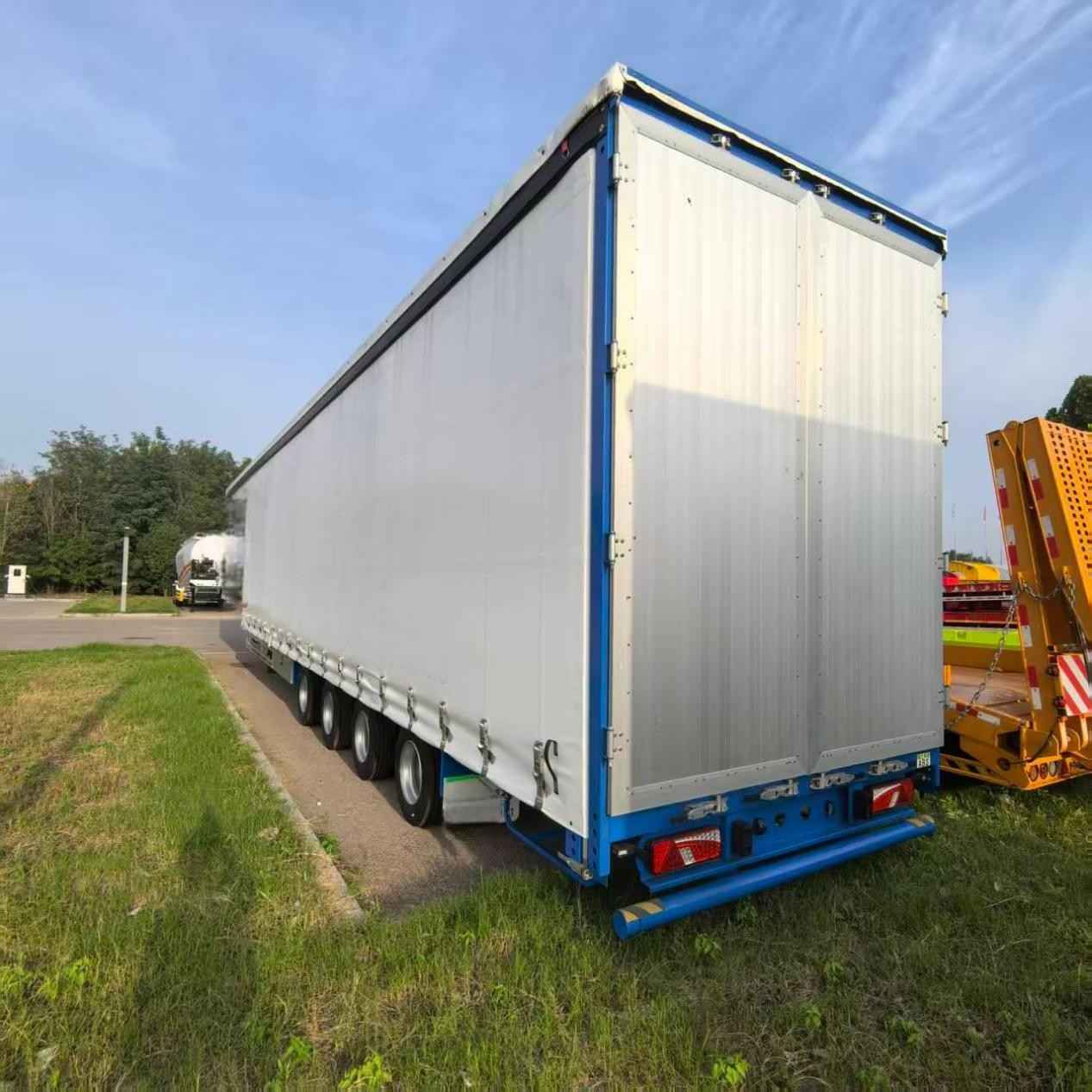

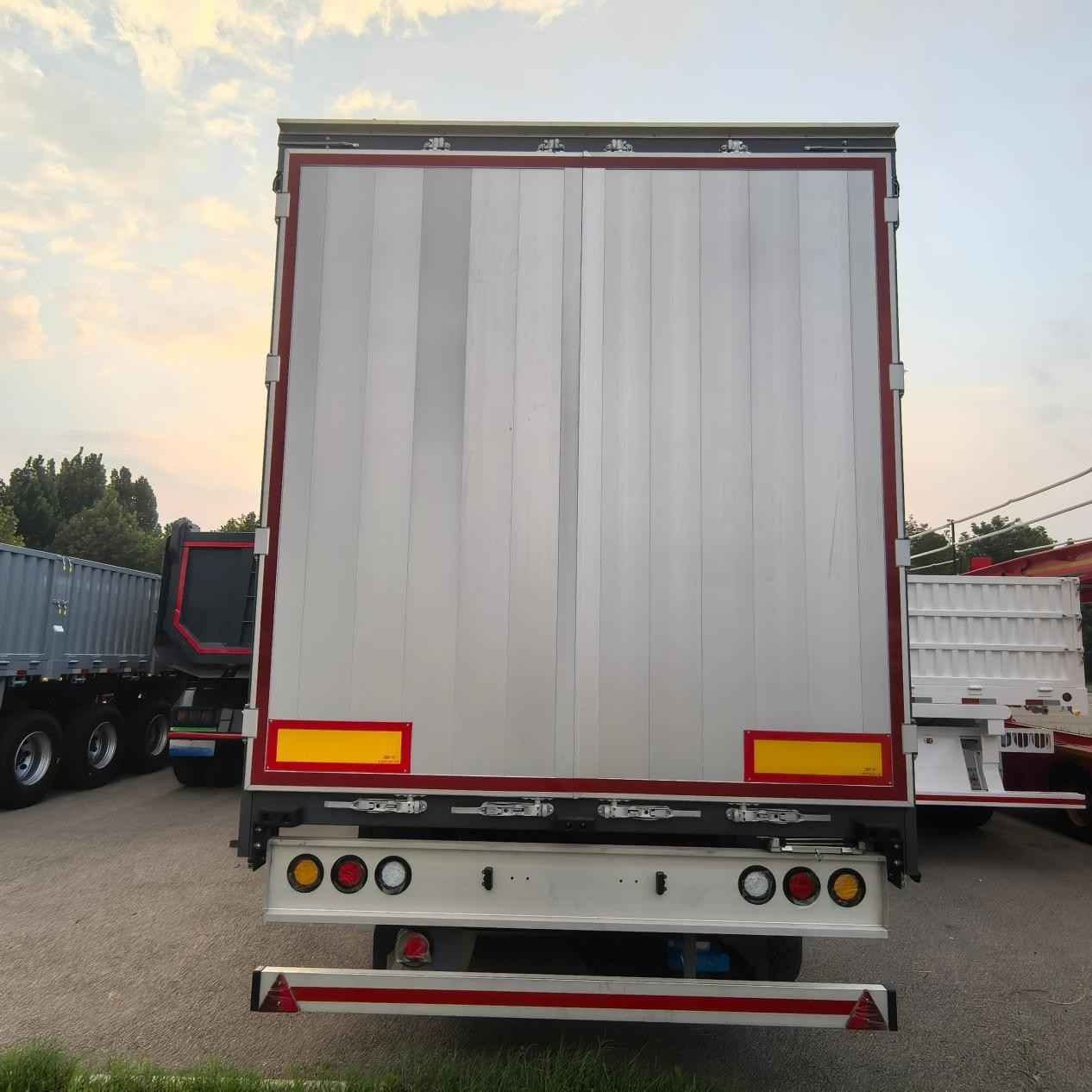

| back door | Back door with hinges, double doors, iron plate |
- The side curtain guardrail requires 4 aluminum alloy profiles and a horizontal ring for the entire vehicle, with the quantity to be determined by the customer.
- The front electrical circuit interface and the lamp model and style shall be specified per unit.
- A set of sliding top covers with side curtains, brand: Dafanqi, cold-resistant. Comes with a sliding top cover handle. The front panel is sealed with a bamboo plywood panel.
4. Install a pull-out ladder on the right rear side of the vehicle, with a small handle on the passenger side. Lay a 2# aluminum alloy patterned base plate horizontally across the rear section, spanning 600mm in width.
