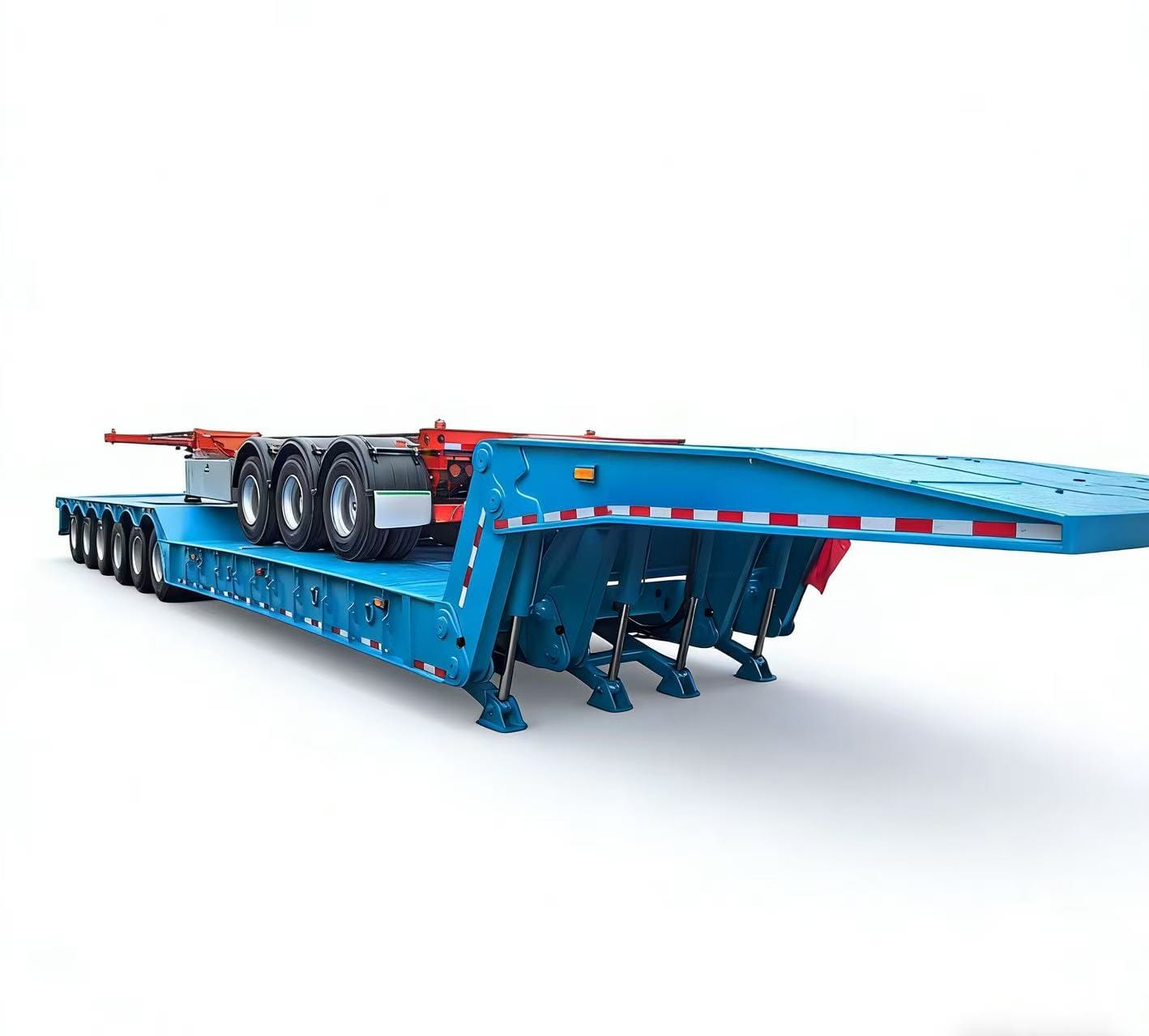

Flat-topped, low-profile semi-trailer with five axles

Category Semi Trailer

Served Globally

0 +

Products Available

0 +

Description

Product name: Forehead-level flatbed semi-trailer

Product model: Special low-profile flatbed

Approved weight capacity: 80T

Length * Width * Height (mm): 18500 * 3000 * 700

Tires: Model 235/75R17.5, Quantity: 20 units

Wheel rims: Model 6.75/17.5, quantity: 20 units

Brake booster pistons: 10 pairs

Brake valve: WABCO

ABS: Guangdong, Komei

Traction pin: 2 inches (50 mm) or 3.5 inches (90 mm) | JOST

Suspension system: Steel spring, 10 pieces, 10 units

The beam height is 500 mm, the upper wing panel is 20 mm, the lower wing panel is 25 mm, and the vertical panel is 12 mm.

Vehicle floor plate: 4mm thick, patterned plate

Beam section with 25 cm wide I-beam

The forehead area is raised and supported by an oil-based system coupled with an electric hydraulic motor unit.

Flat-topped, low-profile semi-trailer with five axles

Description

Description

Product name: Forehead-level flatbed semi-trailer

Product model: Special low-profile flatbed

Approved weight capacity: 80T

Length * Width * Height (mm): 18500 * 3000 * 700

Tires: Model 235/75R17.5, Quantity: 20 units

Wheel rims: Model 6.75/17.5, quantity: 20 units

Brake booster pistons: 10 pairs

Brake valve: WABCO

ABS: Guangdong, Komei

Traction pin: 2 inches (50 mm) or 3.5 inches (90 mm) | JOST

Suspension system: Steel spring, 10 pieces, 10 units

The beam height is 500 mm, the upper wing panel is 20 mm, the lower wing panel is 25 mm, and the vertical panel is 12 mm.

Vehicle floor plate: 4mm thick, patterned plate

Beam section with 25 cm wide I-beam

The forehead area is raised and supported by an oil-based system coupled with an electric hydraulic motor unit.

Heavy-duty construction equipment built to withstand the rigors of infrastructure projects.
