What types of vehicles does Zhimali manufacture?

We specialize in the R&D, manufacturing and sales of a full range of semi-trailers and specialized transport vehicles. Our core products include cargo net semi-trailers, curtain-sided semi-trailers, lowbed trailers, container transport semi-trailers, bulk cement trucks, blade transport vehicles, and other custom special transport equipment.

an Zhimali provide customized vehicle solutions?

Yes, we offer comprehensive customization services. Our engineering team can tailor vehicles according to your specific needs, including adjusting deck structures, upgrading axle systems, adding corrosion-resistant coatings, and designing specialized hydraulic devices for heavy or oversized cargo transport.

What quality assurance does Zhimali provide for its products?

We adopt advanced manufacturing processes, select high-quality raw materials and top-standard components, and strictly follow a reliable quality control system throughout production. All products undergo rigorous performance and safety testing before delivery to ensure durability and stability.

Which countries and regions do Zhimali's products cover?

Our products are sold nationwide in China and exported to more than 50 countries and regions, including Russia, Central Asia, Africa, Southeast Asia, Saudi Arabia, India, Myanmar, Vietnam and Thailand.

How does Zhimali ensure efficient export logistics?

Located in Liangshan with convenient transportation networks, we have easy access to major ports across China. We provide one-stop export support including customs clearance, documentation preparation and shipment tracking, ensuring your orders are delivered on time and efficiently.

Does Zhimali offer after-sales service for overseas customers?

Yes. We have established a global after-sales service network to provide overseas clients with maintenance guidance and technical consultation services. Our professional support team ensures prompt responses, guaranteeing the efficient resolution of all client issues.

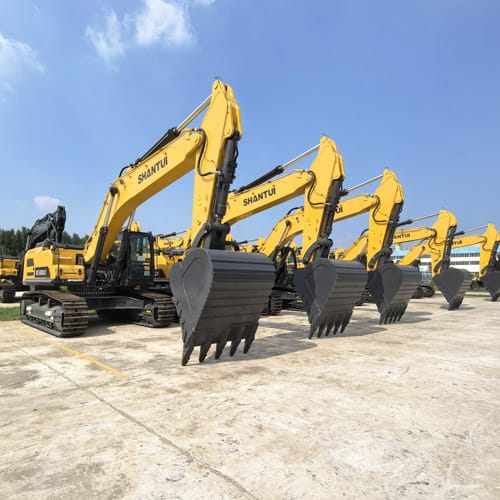

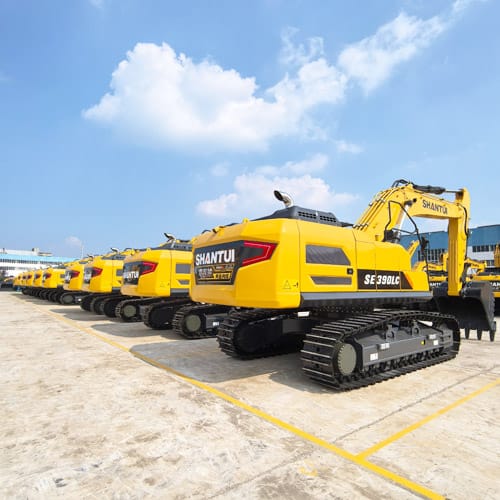

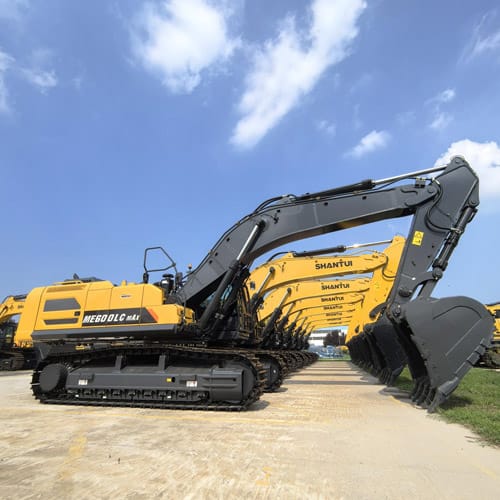

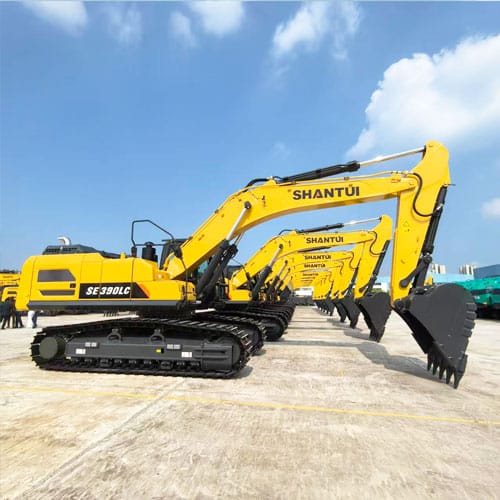

Crawl er Excavator – We Engineer Transport Vehicles to Power Global Logistics

Description

ENGINE
Model	Cummins QSM11
Type	High pressure common rail, turbocharged
No. of cylinder	6
Emission	Tier3/Stage III
Displacement	10.8L
Power output	250kW/2000rpm
HYDRAULIC SYSTEM
Type	Double piston pump plus gear pump
Max. discharge flow	2x360L/min
DIGGING FORCE (ISO6015)
Bucket	288.5kN
Arm	242kN
BUCKET
Type	Backhoe bucket
Capacity	2.2m³
Width	1700mm
TRAVEL SYSTEM
Type	Axial variable plunger motor
Track roller	9×2
Carrier roller	2×2
Track shoe	49×2
Travel speed	3.35/5.6km/h
Max. Drawbar pull	364kN
Gradeability	70% (35°)
SWING SYSTEM
Swing motor type	Swash plate plunger motor
Swing speed	0-10r/min
Brake type	Pressure release, mechanical braking
REFILL CAPACITIES & LUBRICATIONS
Fuel tank	620L
Cooling system	34L
Engine oil	35L
Hydraulic oil tank	366L
System Capacity	460L
OPERATING WEIGHT AND GROUND PRESSURE
Shoe width	600mm
Ground pressure	81.98kPa
Operating weight	46800kg
SCOPE OF WORK (mm) (BOOM: 7060 mm, ARM: 3380 mm)
A. Max. digging height	10855
B. Max. dumping height	7605
C. Max. digging depth	7805
D. Max. vertical digging depth	5870
E. Max. depth cut for 2500 mm level bottom	7650
F. Max. digging distance	12000
G. Max. digging radius at ground level	11820
Min. swing radius of work equipment	4840
DIMENSIONS (mm)
A. Overall length	12110
B. Ground contact length (Transportation)	6655
C. Overall height (to top of cab)	3760
D. Overall width	3080
E. Overall height (top of cab)	3330
F. Counterweight ground clearance	1395
G. Ground clearance	590
H. Tail swing radius	3720
I. Tread	4290
J. Track length	5315
K. Track gauge	2760
L. Track width	3080
M. Shoe width	600
P. Bonnet height	2985
Q. Revolving frame width	3130
R. Distance from swivel center to tail	3675

Description

ENGINE

Model

Cummins QSM11

Type

High pressure common rail, turbocharged

No. of cylinder

Emission

Tier3/Stage III

Displacement

10.8L

Power output

250kW/2000rpm

HYDRAULIC SYSTEM

Type

Double piston pump plus gear pump

Max. discharge flow

2x360L/min

DIGGING FORCE (ISO6015)

Bucket

288.5kN

Arm

242kN

BUCKET

Type

Backhoe bucket

Capacity

2.2m³

Width

1700mm

TRAVEL SYSTEM

Type

Axial variable plunger motor

Track roller

9×2

Carrier roller

2×2

Track shoe

49×2

Travel speed

3.35/5.6km/h

Max. Drawbar pull

364kN

Gradeability

70% (35°)

SWING SYSTEM

Swing motor type

Swash plate plunger motor

Swing speed

0-10r/min

Brake type

Pressure release, mechanical braking

REFILL CAPACITIES & LUBRICATIONS

Fuel tank

620L

Cooling system

34L

Engine oil

35L

Hydraulic oil tank

366L

System Capacity

460L

OPERATING WEIGHT AND GROUND PRESSURE

Shoe width

600mm

Ground pressure

81.98kPa

Operating weight

46800kg

SCOPE OF WORK (mm) (BOOM: 7060 mm, ARM: 3380 mm)

A. Max. digging height

10855

B. Max. dumping height

7605

C. Max. digging depth

7805

D. Max. vertical digging depth

5870

E. Max. depth cut for 2500 mm level bottom

7650

F. Max. digging distance

12000

G. Max. digging radius at ground level

11820

Min. swing radius of work equipment

4840

DIMENSIONS (mm)

A. Overall length

12110

B. Ground contact length (Transportation)

6655

C. Overall height (to top of cab)

3760

D. Overall width

3080

E. Overall height (top of cab)

3330

F. Counterweight ground clearance

1395

G. Ground clearance

590

H. Tail swing radius

3720

I. Tread

4290

J. Track length

5315

K. Track gauge

2760

L. Track width

3080

M. Shoe width

600

P. Bonnet height

2985

Q. Revolving frame width

3130

R. Distance from swivel center to tail

3675
