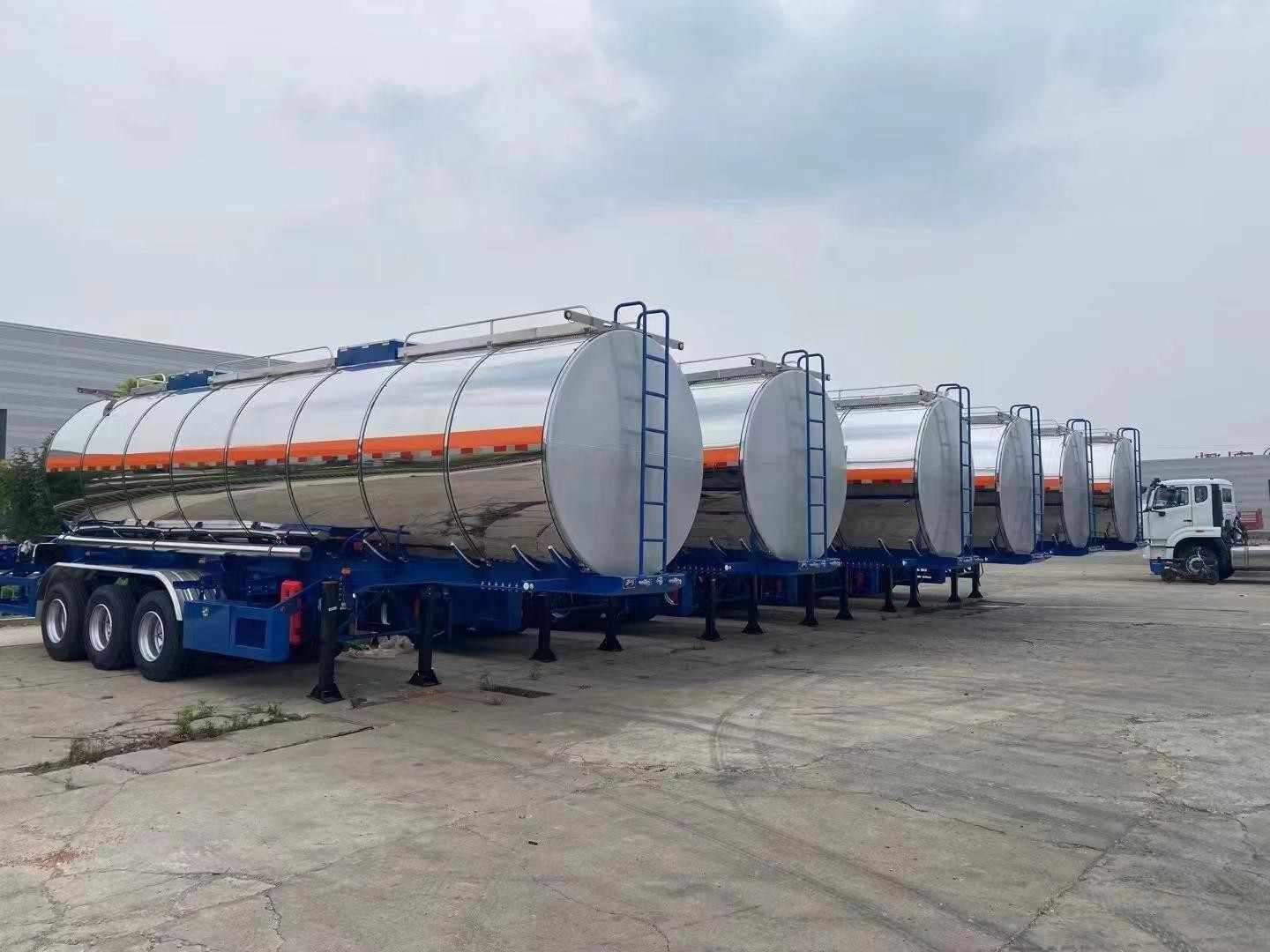

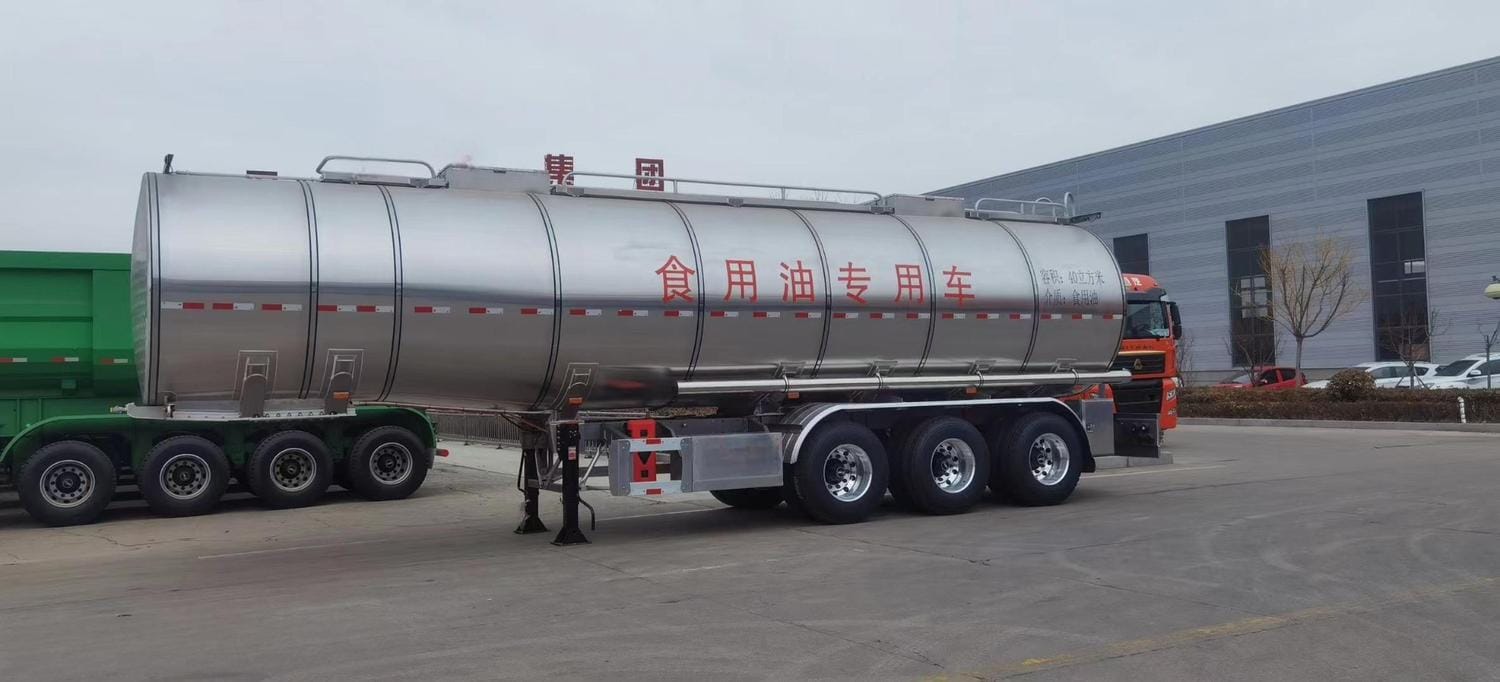

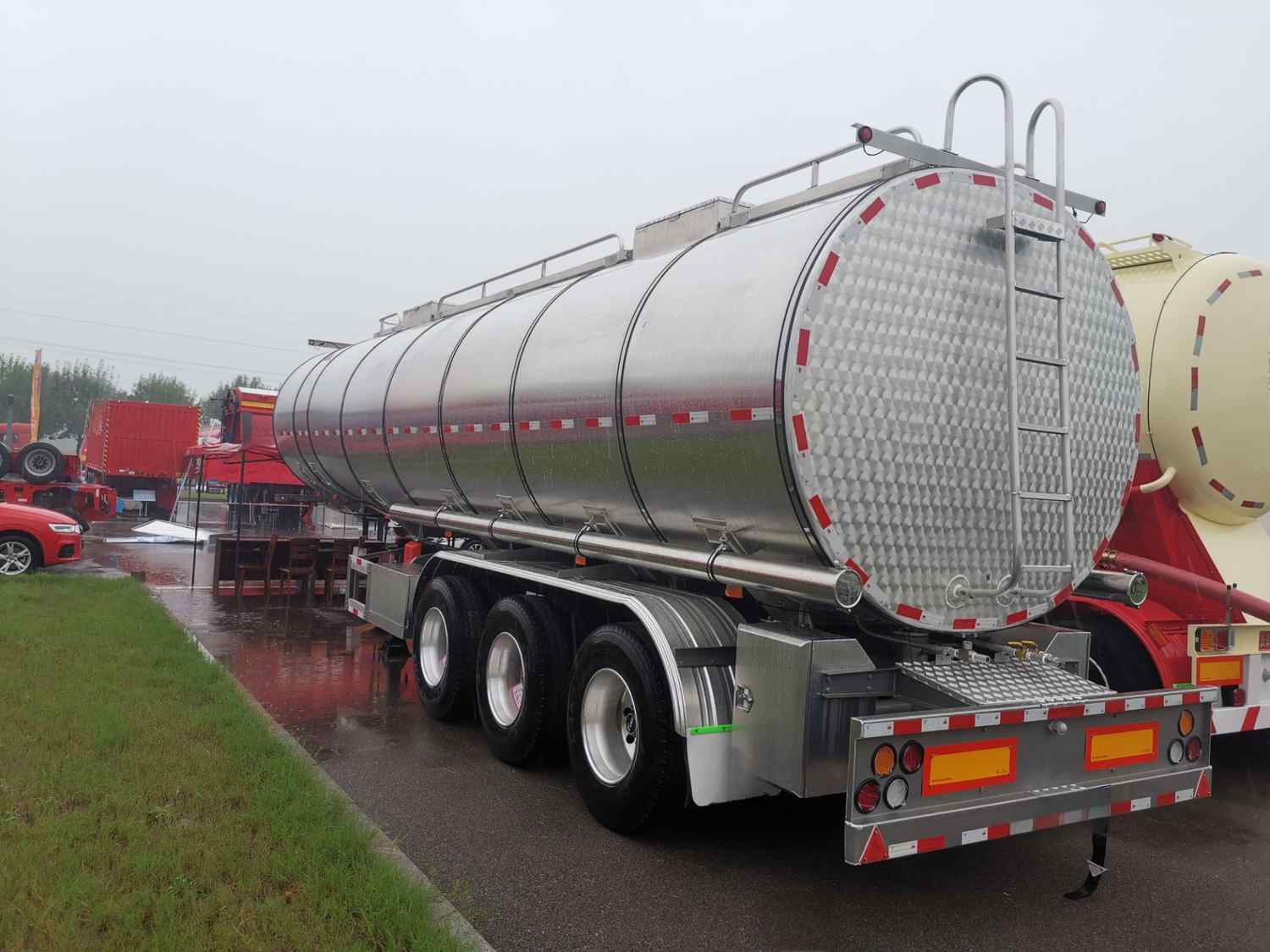

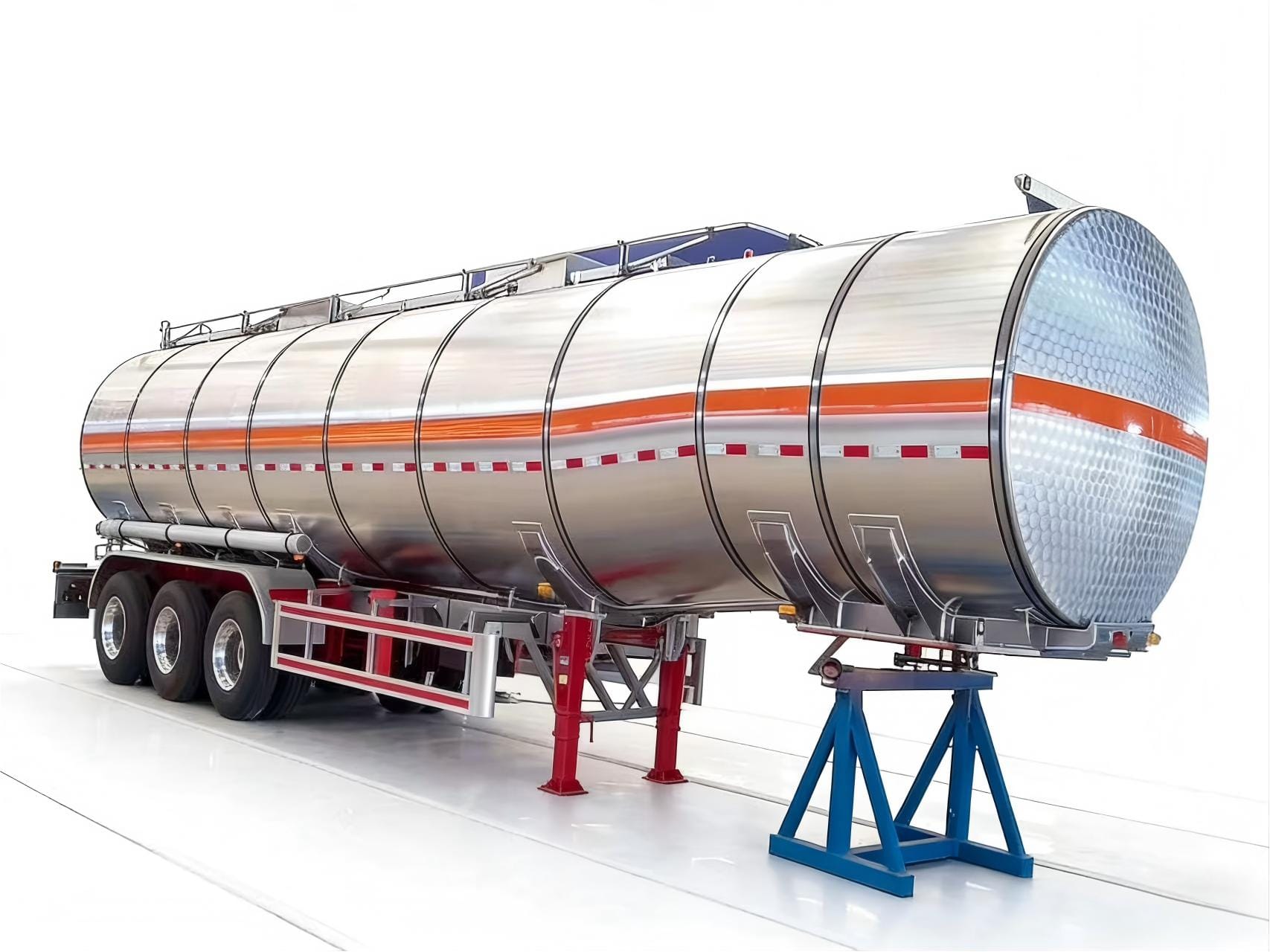

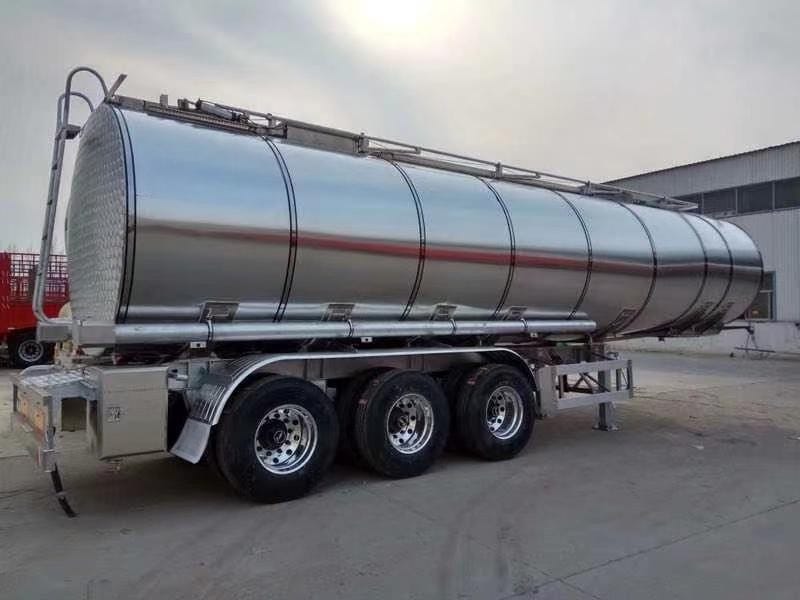

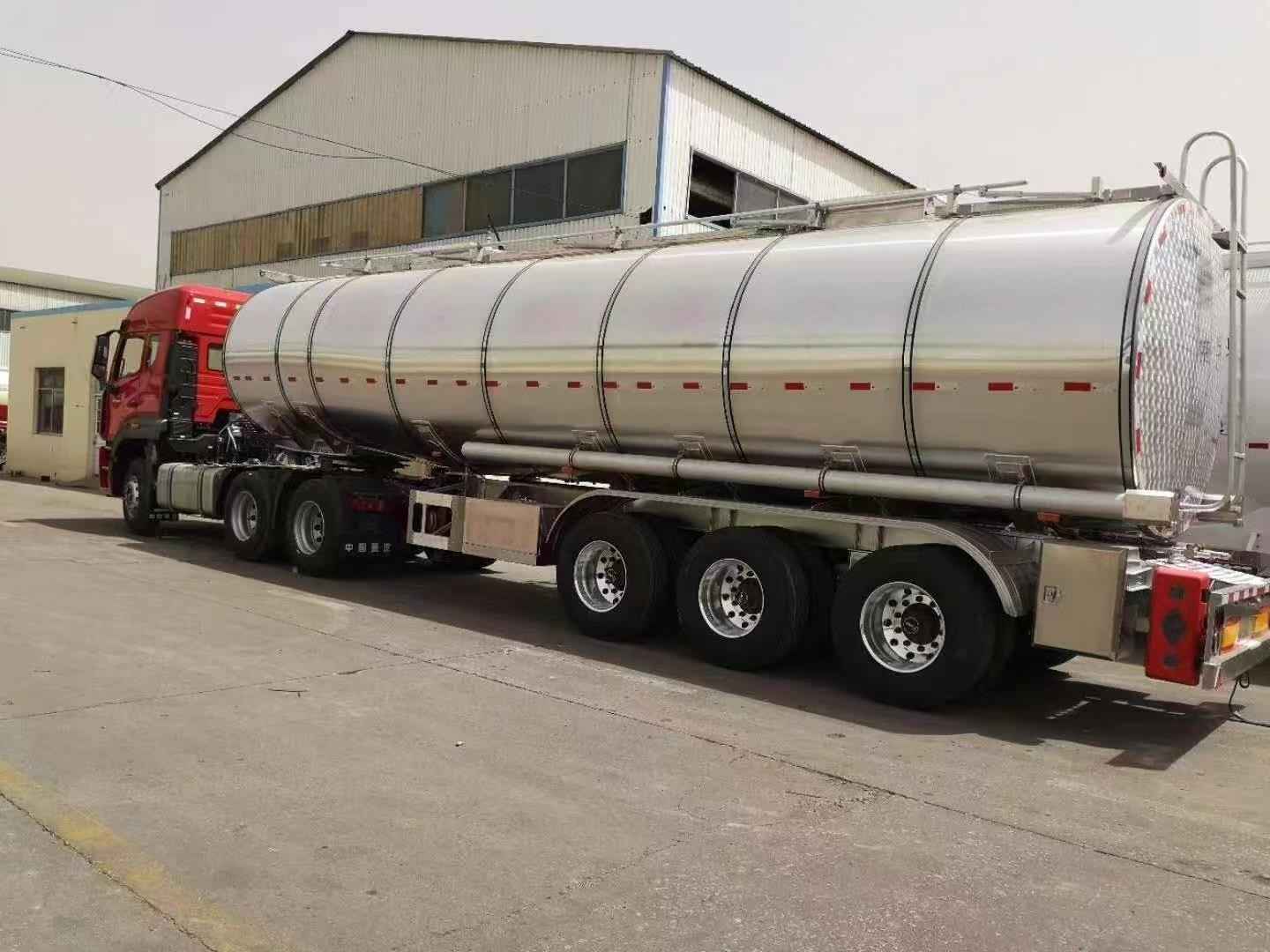

3 axle Edible oil transport semi-trailer

3 axle Edible oil transport semi-trailer - Image 3

3 axle Edible oil transport semi-trailer - Image 4

3 axle Edible oil transport semi-trailer

Category Semi Trailer

Served Globally

0 +

Products Available

0 +

Description

Load capacity: 40T

Length*Width*Height (mm) 13000*2500*3850

Tires 11.00R20/12.00R20/12R22.5/315/80R22.5/385/65R22.5 (optional) Quantity 12

Wheel rim 8.5-20/9.0-20/9.0-22.5/11.75-22.5 (optional) Quantity 12

Car axle (Brand: FUWA/BPW/SAF/ZML) 11T,13T,16T,20T (optional) 3 Drum Brakes

spring plate: 90mm wide*10 pieces*6 frames

Legs: FUWA/JOST/Factory Logo 28T

Toolbox: 1 standard

Reserve tire rack: 1

Climb ladder: rear installation

Brake calipers: 6 pairs

Brake valve: WABCO

ABS: WABCO/Comi/Factory Logo

JOST drawbar: 2-inch (50mm) or 3.5-inch (90mm)

Suspension system: Mechanical suspension (6mm thick) and air suspension (60mm thick)

Volume: 45m³

Tank thickness: 5mm

Seal thickness: 6mm

Cork: 2

Baskets: 2

Fire extinguishers: 2 x 8kg

Static electricity strip

The tank is externally insulated with thermal insulation cotton and packaged with galvanized steel sheets.

The color of the tank is determined according to the customer’s requirements.

3 axle Edible oil transport semi-trailer

Description

Description

Load capacity: 40T

Length*Width*Height (mm) 13000*2500*3850

Tires 11.00R20/12.00R20/12R22.5/315/80R22.5/385/65R22.5 (optional) Quantity 12

Wheel rim 8.5-20/9.0-20/9.0-22.5/11.75-22.5 (optional) Quantity 12

Car axle (Brand: FUWA/BPW/SAF/ZML) 11T,13T,16T,20T (optional) 3 Drum Brakes

spring plate: 90mm wide*10 pieces*6 frames

Legs: FUWA/JOST/Factory Logo 28T

Toolbox: 1 standard

Reserve tire rack: 1

Climb ladder: rear installation

Brake calipers: 6 pairs

Brake valve: WABCO

ABS: WABCO/Comi/Factory Logo

JOST drawbar: 2-inch (50mm) or 3.5-inch (90mm)

Suspension system: Mechanical suspension (6mm thick) and air suspension (60mm thick)

Volume: 45m³

Tank thickness: 5mm

Seal thickness: 6mm

Cork: 2

Baskets: 2

Fire extinguishers: 2 x 8kg

Static electricity strip

The tank is externally insulated with thermal insulation cotton and packaged with galvanized steel sheets.

The color of the tank is determined according to the customer’s requirements.
